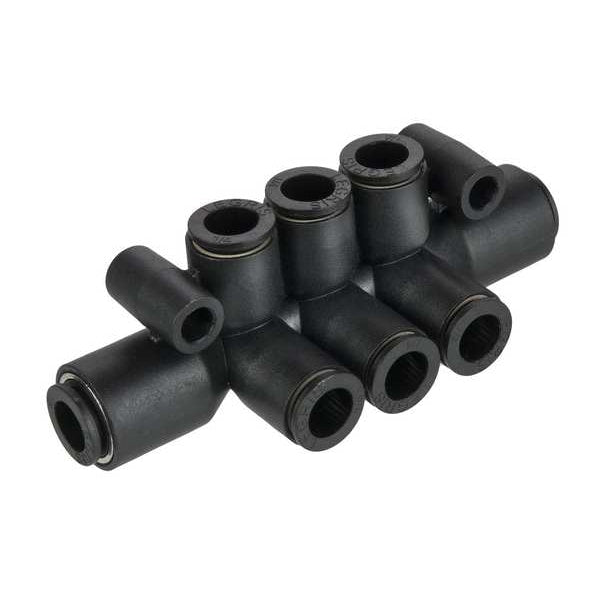

Legris 33065656 Push to Connect Fitting

Product Description

Legris 33065656 is a push-to-connect fitting designed for 1/4 inch outer diameter tubing connections. This fitting is suitable for pneumatic applications, allowing fast connections with minimal tools. The fitting body is made from glass-filled nylon, providing durability for various uses. The nickel-plated brass threaded components enhance corrosion resistance, while the buna-nitrile elastomer seals ensure a tight, leak-free connection. To connect or disconnect, users simply push and release the tubing, which does not deform the tubing, thus making it reusable.

• Uses minimal labor and time for connections
• Requires no tools for installation
• Reusable and compatible with multiple tubing types

Product Highlights

Ideal for both professionals and DIY projects in pneumatic setups.

Product Information

Standard Information

• Brand: Legris
• Part Number: 33065656

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Tube O.D.: 1/4 in
• Material: Nylon Body
• No. of Ends: 8
• End Types: Tubing
• Fitting Angle: 90°
• Overall Length: 2.84 in
• End Size: 1/4 Tube(f)
• Height: 0.730 in
• Size Type: Fractional Sizes
• EAN or UPC: 820099266237
