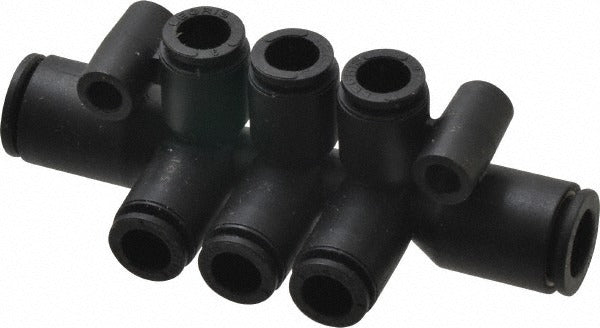

Legris 3306 08 06 Double Multiple Tee Fitting 8x6mm Nylon

Product Description

The LEGRIS 3306 08 06 is a push-to-connect double multiple tee tube fitting designed for pneumatic and fluid distribution systems. Constructed from black nylon, this fitting accepts 8mm outside diameter tube on one port dimension and 6mm outside diameter tube on the other, providing a rated working pressure of 290 psi. Integrated mounting holes allow the fitting to be secured directly to a panel or bracket, reducing loose fittings in multi-line installations. It is a compact, tool-free connection solution suited for industrial automation, pneumatic control panels, and compressed air distribution. Installation does not require sealant or threading — tubing seats and locks with a single push.

This fitting is appropriate for use in pneumatic systems where multiple branch lines must be distributed from a single manifold-style body. The double multiple tee configuration supports parallel tube routing in tight enclosures or equipment panels. Typical installation environments include industrial machinery, automated assembly equipment, and process control panels that use small-bore nylon or polyurethane tubing. The mounting holes make this fitting well-suited for applications where vibration or movement could stress unsupported tubing connections.

Key Features

• Push-to-connect design for tool-free, rapid tube insertion and release
• Double multiple tee body for distributing multiple parallel pneumatic lines
• Integrated mounting holes allow panel or bracket mounting to reduce line stress
• Nylon construction provides lightweight, corrosion-resistant performance
• Rated to 290 psi working pressure for standard pneumatic service
• Compact form factor suited for space-constrained control panels and enclosures

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic systems using 8mm and 6mm outside diameter nylon or polyurethane tubing in industrial and automation applications.

Installation Notes

Depressurize and bleed the pneumatic system fully before removing or installing any push-to-connect fittings. Ensure tubing ends are cut cleanly and squarely — a ragged cut will prevent a proper seal and can damage the internal collet. When mounting to a panel using the integrated holes, avoid overtightening fasteners that could distort the fitting body. Verify the system operating pressure does not exceed the 290 psi rating of this fitting under any surge condition.
