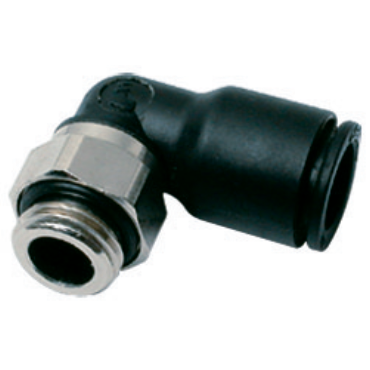

Legris 31991013 90 Degree Male Elbow

Product Description

Legris 31991013 is a 90-degree male elbow fitting designed for push-to-connect applications. This fitting is suitable for connecting semi-rigid plastic tubing in pneumatic systems with minimal installation labor. The body is made from glass-filled nylon, ensuring durability under pressure. Components are made from nickel-plated brass, while buna-nitrile seals provide reliable sealing. This fitting supports easy connections and disconnections without the need for tools. Just push the tubing into the stainless steel gripping ring for a secure connection.

• Designed for 10mm outside diameter tubing
• 1/4 BSPP male thread connection
• Reusable and leak-free sealing mechanism

Product Highlights

This fitting is ideal for various pneumatic applications where quick assembly and disassembly are essential.

Product Information

Standard Information

• Brand: Legris
• MPN: 31991013

Technical Specifications

• Max Working Pressure: 290 psi
• Working Temperature Range: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Rotates: 360° for ease of assembly
• Thread Sealant: Pre-applied on tapered threads
• Material: Nickel-Plated Brass
• Body Material: Glass-Filled Nylon
• End Types: Tubing & BSPP
