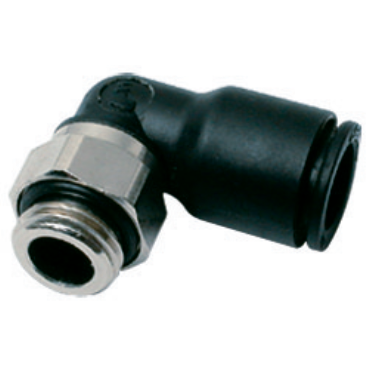

Legris 31990821 Push to Connect Fitting

Product Description

The Legris 31990821 is a push to connect fitting designed for efficient fluid transfer. This male elbow fitting is suitable for use with eight millimeter outer diameter tubing. It features a half-inch BSPP thread for easy integration into various systems.

• Maximum working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Rotates 360° for assembly convenience

Product Highlights

This fitting provides reliable connections in HVAC, plumbing, and pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 102134693

Technical Specifications

• Size Type: Metric Sizes
• End Types: Tubing & BSPP
• Material: Nylon body, nickel-plated brass with O-ring seal
• Fitting Angle: 90°
• Tube O.D.: 5/16 in, 8.000 mm
• Thread Type: BSPP
• No. of Ends: 2
• Fitting Description: 90° Male Elbow
• Height: 19.000 mm
• End Size: 5/16 in or 8 mm Tube(f)
• Thread Size: 1/2
• Overall Length: 23 mm
• Origin: Plastic Push to Connect Fittings
• Hex Size: 24 mm
• Weight: 0.055 LB
• EAN or UPC: 820099538372
