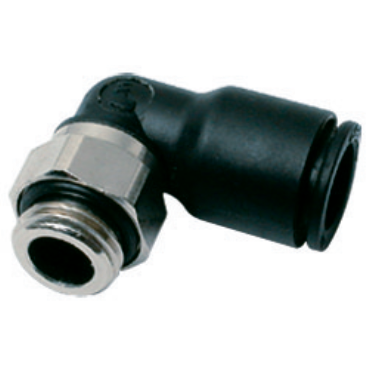

Legris 31990621 Push to Connect Fitting 290 psi (Each)

Product Description

The Legris 31990621 Push to Connect Fitting is suitable for a variety of applications. It operates under a maximum working pressure of 290 psi and functions optimally in temperatures ranging from -4 degrees Fahrenheit to 175 degrees Fahrenheit. The fitting features a 90-degree male elbow designed for six millimeter outer diameter tubing with a half-inch BSPP thread. It is ready for immediate use, as it comes with pre-applied thread sealant on tapered threads. This product rotates 360 degrees for easy assembly, making it a practical choice for professionals.

• Max working pressure: 290 psi
• Temperature range: -4 °F to 175 °F
• Pre-applied thread sealant and rotational capability

Product Highlights

This fitting is ideal for use in fluid transfer systems and pneumatic installations, providing reliable connections without leakage.

Product Information

Standard Information

• Part Number: 31990621
• Brand: Legris

Technical Specifications

• Tube O.D.: 6 mm
• Material: Nylon body, nickel-plated brass with O-ring seal
• Thread Size: 1/2
• Thread Type: BSPP
• Overall Length: 16 mm
• Height: 16 mm
• Hex Size: 24 mm
• No. of Ends: 2
• End Types: Tubing & BSPP
