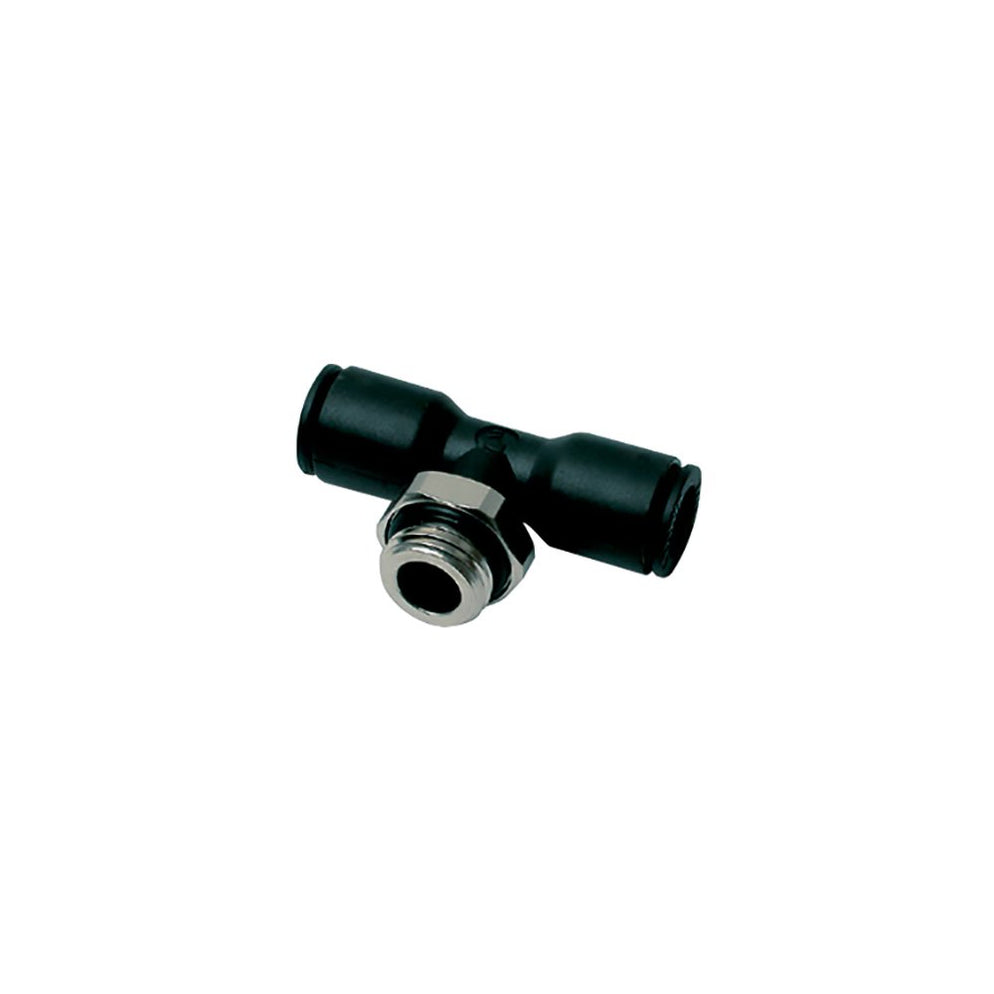

Legris 31980419 Push to Connect Fitting

Product Description

Legris 31980419 is a push-to-connect fitting designed for pneumatic applications. It connects semirigid plastic tubing with a simple push. The body is made from glass-filled nylon. The threaded parts are nickel-plated brass, and it uses buna-nitrile for the seals.

• Max working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Vacuum rating: 28 in Hg

Product Highlights

This fitting ensures a tight and leak-free connection by pushing the tubing into a patented stainless steel gripping ring. A plastic release button makes disconnection easy and requires no tools. These fittings do not deform the tubing and can be reused.

Product Information

Standard Information

• Brand: Legris
• MPN: 31980419

Technical Specifications

• Material: nylon body with O-ring seal, nickel-plated brass base
• Fitting Description: Male Branch Tee
• Thread Size: M5
• Thread Type: Metric
• Height: 17.500 mm
• Tube O.D.: 4.000 mm, 5/32 in
• Fitting Angle: 90°
• No. of Ends: 3
• End Size: 5/32 or 4 mm Tube (f)
• Hex Size: 8 mm
• Weight: 0.008 LB
• Origin: Plastic Push to Connect Fittings
• EAN or UPC: 820099255057
