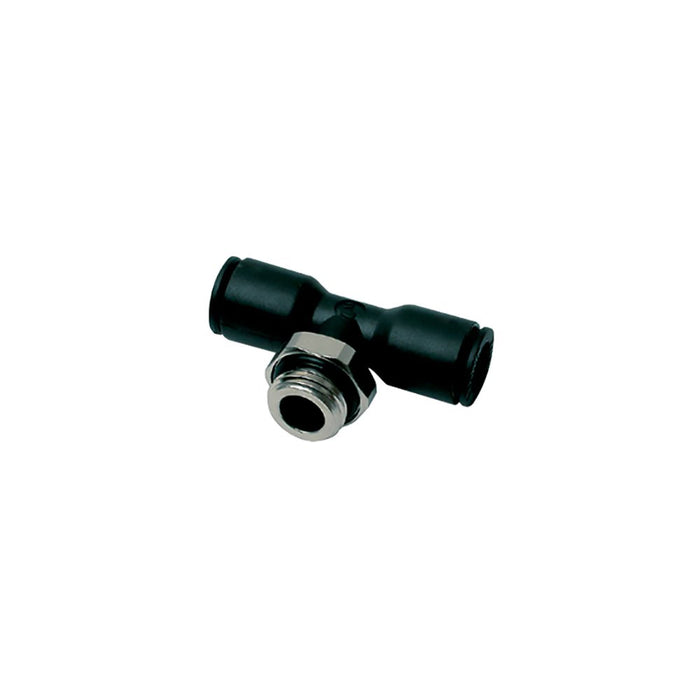

Legris 31980410 Push to Connect Fitting

Product Description

Legris 31980410 is a push-to-connect fitting designed for efficient connections in pneumatic applications. Constructed from durable glass-filled nylon with nickel-plated brass threaded components, this fitting is compatible with semirigid plastic tubing. It features a patented stainless steel gripping ring that ensures a tight, leak-free connection. The design allows easy install and removal without tools. Simply push the tubing in to connect or press the release button to disconnect.

• Max working pressure: 290 psi
• Temperature range: -4°F to 175°F
• Reusable and doesn't deform tubing

Product Highlights

This fitting is ideal for quick and reliable tubing connections in various pneumatic systems. Its design allows for rotations of up to 360° for easier assembly.

Product Information

Standard Information

• Brand: Legris
• MPN: 31980410

Technical Specifications

• Thread Type: BSPP
• Material: Nylon body with O-ring seal
• Fitting Angle: 90°
• No. of Ends: 3
• Hex Size: 13 mm
• End Size: 5/32 or 4 mm Tube(f)
• Size Type: Metric Tube x BSPP Threads
• End Types: Tubing & BSPP
• Origin: Plastic Push to Connect Fittings
• Thread Size: 1/8
• Fitting Description: Male Branch Tee
• Tube O.D.: 4.000 mm, 5/32 in
• Height: 15.000 mm
• Weight: 0.018 LB
• EAN or UPC: 820099254920
