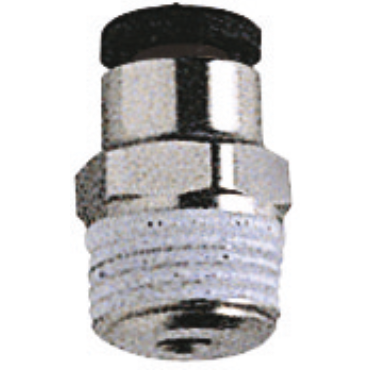

Legris 31750417 Push to Connect Fitting

Product Description

The Legris 31750417 Push to Connect Fitting is designed for quick and reliable connections in pneumatic systems. This fitting works well with five thirty-second inch or four millimeter outer diameter tubing and features a three-eighth inch male BSPT thread for versatile applications.

• Max working pressure of 290 psi
• Temperature range from negative four °F to one hundred seventy-five °F
• Pre-applied thread sealant for easy installation

Product Highlights

The Legris Push to Connect Fitting is ideal for applications requiring fast and efficient connections.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31750417

Technical Specifications

• End Types: Tubing & BSPT
• Fitting Angle: Straight
• Material: Nickel-plated brass with pre-applied thread sealant
• No. of Ends: 2
• End Size: 5/32 or 4 mm Tube(f)
• Fitting Description: Male Connector
• Thread Size: 3/8
• Origin: Plastic Push to Connect Fittings
• Hex Size: 17 mm
• Tube O.D.: 4.000 mm, 5/32 in
• Thread Type: BSPT
• Size Type: Metric Tube x BSPT Threads
• Weight: 0.033 LB
• EAN or UPC: 820099246062
