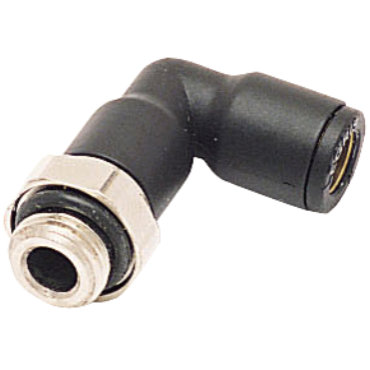

Legris 31690619 Push to Connect Fitting

Product Description

The Legris 31690619 is a push to connect fitting used for efficient tubing connections. It features an extended male elbow design suitable for six millimeter outer diameter tubing. The fitting includes a five millimeter male metric port for easy integration.

• Extended male elbow fitting
• Compatible with six millimeter tubing
• Constructed from nylon and nickel-plated brass

Product Highlights

This fitting is designed for use with tubing and metric thread applications, enabling quick and secure connections.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31690619

Technical Specifications

• Fitting Description: Extended Male Elbow
• Tube O.D.: 6.000 mm
• Height: 27.500 mm
• End Types: Tubing & Metric Thread
• Thread Size: M5
• Thread Type: Metric
• Hex Size: 10 mm
• No. of Ends: 2
• Origin: Plastic Push to Connect Fittings
• Fitting Angle: 90°
• End Size: 6 mm Tube(f)
• Material: Nylon body with O ring seal, nickel-plated brass base
• Overall Length: 23 mm
• Weight: 0.019 LB
• EAN or UPC: 820099244815
