Legris 31665660 Reducer

Product Description

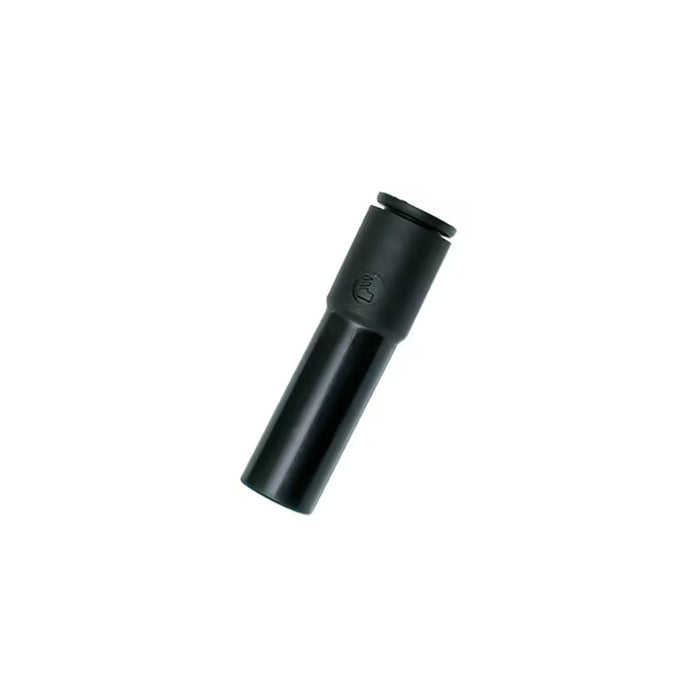

Legris 31665660 is a reducer fitting designed for push-to-connect applications. This product connects three eighths inch tubing to quarter inch tubing efficiently. The body is made from glass-filled nylon, ensuring durability in pneumatic systems. Threaded components consist of nickel-plated brass, while elastomer seals are made from buna-nitrile. Users can achieve a secure, leak-free connection by simply pushing the tubing into the stainless steel gripping ring.

• Push-to-connect design
• Reusable and does not deform tubing
• Standard plastic release button for easy disconnection

Product Highlights

This reducer fitting allows for fast and easy connections in various pneumatic applications with minimal tools required.

Product Information

Standard Information

• Brand: Legris
• MPN: 31665660

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Material: Nylon Body
• Body Material: Nylon
• No. of Ends: 2
• Fitting Angle: Straight
• End Types: Tubing
• Tube O.D. 1: 1/4 in
• Tube O.D. 2: 3/8 in
• End Size: 1/4 Tube(f)
• Size Type: Fractional Sizes
• Weight: 0.016 LB
• EAN or UPC: 820099243771
