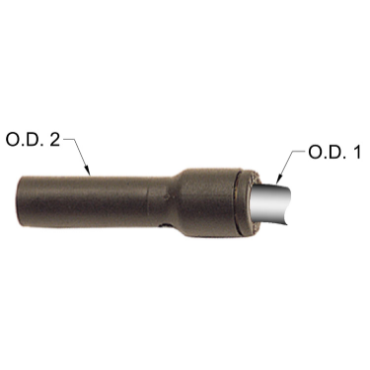

Legris 31665304 Push to Connect Fitting

Product Description

Legris 31665304 is a push-to-connect fitting designed for quick and easy connections in pneumatic systems. The body is made of glass-filled nylon which offers strength and durability. The fitting features nickel-plated brass threaded components and buna-nitrile elastomer seals. This ensures a reliable, leak-free connection. For connection, simply push the tubing into the patented stainless steel gripping ring with a low-force plastic release button allowing for easy disconnection. This fitting is compatible with tubing made from nylon, polyurethane, polyethylene, or Teflon.

• Union Reducer from 5/32 tubing to 1/8 tubing
• Quick and tool-free connections
• Reusable and does not deform the tubing

Product Highlights

This fitting allows for efficient use in various pneumatic applications.

Product Information

Standard Information

• Origin: Plastic Push to Connect Fittings
• UOM: each

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• No. of Ends: 2
• Material: Nylon
• Tube O.D. 1: 1/8 in
• Tube O.D. 2: 5/32 in, 4 mm
• Fitting Angle: Straight
• End Types: Tubing
• End Size: 1/8 Tube(f)
• Weight: 0.018 LB
• EAN or UPC: 820099639444
