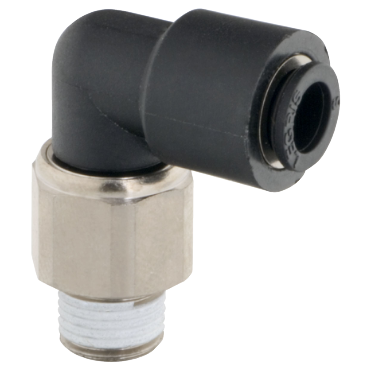

Legris 31591217 Push to Connect Fitting

Product Description

The Legris 31591217 is a push to connect fitting designed for quick assembly and disassembly in fluid systems. This fitting connects to twelve millimeter outer diameter tubing and features a three-eighths male BSPT connection. The compact elbow allows for efficient routing of pipes in tight spaces, making it suitable for various applications in plumbing and HVAC systems.

• Connects to twelve millimeter tubing
• Includes a three-eighths male BSPT connection
• Compact design for space-saving installations

Product Highlights

This fitting is ideal for applications requiring quick connections in pneumatic or hydraulic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 31591217

Technical Specifications

• End Types: Tubing & BSPT
• Fitting Description: Oscillating Compact Elbow
• Tube O.D.: 12.000 mm
• Origin: Plastic Push to Connect Fittings
• End Size: 12 mm Tube(f)
• Height: 41.000 mm
• Hex Size: 21 mm
• Thread Size: 3/8
• Overall Length: 32 mm
• Fitting Angle: 90°, Swivel
• Material: nylon body, nickel-plated brass base, pre-applied thread sealant
• Thread Type: BSPT
• No. of Ends: 2
• Weight: 0.163 LB
• EAN or UPC: 820099241104
