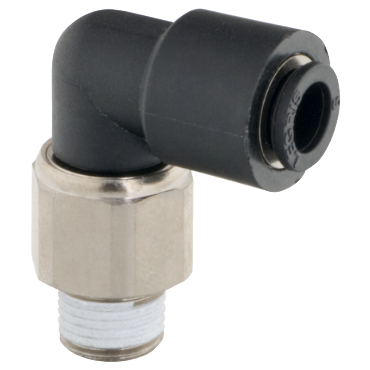

Legris 31590810 Push to Connect Fitting

Product Description

The Legris 31590810 is a push to connect fitting designed for efficient connections in tubing applications. This fitting features a durable design that accommodates eight millimeter outside diameter tubing and utilizes a one eighth inch male BSPT thread.

• Oscillating compact elbow configuration.
• Designed for use with 8mm O.D. tubing.
• Made from nylon with a nickel-plated brass base.

Product Highlights

Legris push to connect fittings streamline connections with ease and reliability.

Product Information

Standard Information

• Brand: Legris
• MPN: 31590810

Technical Specifications

• Hex Size: 17 mm
• Thread Size: 1/8
• Origin: Plastic Push to Connect Fittings
• Overall Length: 24.5 mm
• Tube O.D.: 8.000 mm
• End Size: 5/16 or 8 mm Tube(f)
• Height: 31.000 mm
• Material: Nylon body, nickel-plated brass base, pre-applied thread sealant
• Fitting Description: Oscillating Compact Elbow
• No. of Ends: 2
• Fitting Angle: 90°, Swivel
• Thread Type: BSPT
• End Types: Tubing & BSPT
• Weight: 0.079 LB
• EAN or UPC: 820099240923
