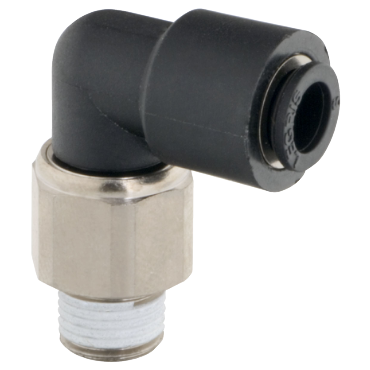

Legris 31590411 Push to Connect Fitting

Product Description

Legris 31590411 is a push-to-connect fitting designed for quick and easy connections in pneumatic applications. It is made of glass-filled nylon, offering durability and strength. This fitting is compatible with various tubing types including nylon, polyurethane, polyethylene, and Teflon. It connects tubing with minimal labor and can be easily assembled without tools.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This fitting provides a leak-free connection through a patented stainless steel gripping ring and includes a plastic release button for effortless disconnection.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31590411

Technical Specifications

• Tube O.D.: 5/32 inches
• Overall Length: 0.69 inches
• Fitting Description: Oscillating Compact 90° Elbow
• Origin: Plastic Push to Connect Fittings
• End Types: Tubing & NPT
• No. of Ends: 2
• End Size: 5/32 Tube, 1/8 NPT
• Height: 0.850 inches
• Thread Size: 1/8
• Thread Type: NPT
• Body Material: Nylon
• Fitting Angle: 90°, Swivel
• Weight: 0.029 pounds
• EAN or UPC: 820099240831
