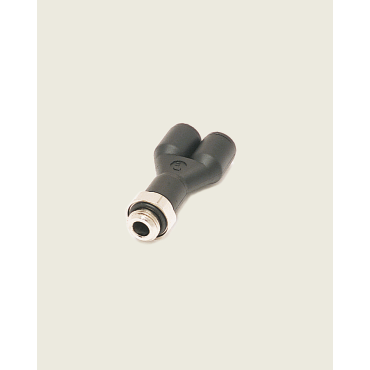

Legris 31580419 Push to Connect Fitting

Product Description

The Legris 31580419 is a push to connect fitting designed for use with four millimeter outer diameter tubing. This fitting simplifies connections in various fluid systems by allowing easy and quick installation without the need for tools. The compact design and reliable materials make it suitable for a wide range of applications.

• Y male fitting for four millimeter O.D. tubing
• Five millimeter male metric port size
• Constructed from durable materials for long-lasting performance

Product Highlights

Ideal for connecting pipes in pneumatic and hydraulic systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31580419

Technical Specifications

• Overall Length: 17.5 mm
• Fitting Angle: Straight
• Thread Type: Metric
• Size Type: Metric Tube x BSPP Threads
• End Size: 5/32 or 4 mm Tube(f)
• Origin: Plastic Push to Connect Fittings
• Material: Nylon body, nickel-plated brass base, O-ring seal
• Height: 32.500 mm
• Hex Size: 8 mm
• Fitting Description: Y-Tube to Male Thread
• Tube O.D.: 4.000 mm, 5/32 in
• No. of Ends: 3
• End Types: Tubing & Metric Thread
• Thread Size: M5
• Weight: 0.022 LB
• EAN or UPC: 820099240404
