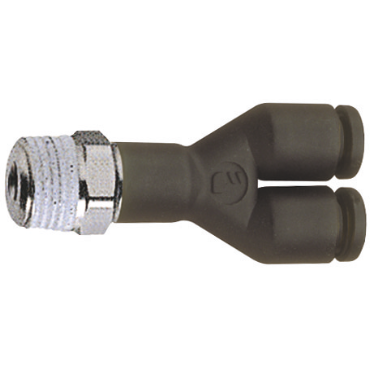

Legris 31480610 Push to Connect Fitting

Product Description

Legris 31480610 is a push-to-connect fitting designed for quick and reliable connections in pneumatic applications. It connects semirigid plastic tubing with minimal effort. The fitting's body is made from glass-filled nylon, ensuring durability. Connections are made easy with a patented stainless steel gripping ring. This fitting maintains a leak-free seal by simply pushing the tubing in.

• Y Male for six millimeter outer diameter tubing
• Compatible with one eighth male BSPT threads
• Reusable without deformation

Product Highlights

Efficient fitting for pneumatic systems

Product Information

Standard Information

• Brand: Legris
• Part Number: 31480610

Technical Specifications

• Material: Nylon body, nickel-plated brass base, pre-applied thread sealant
• Hex Size: 10 mm
• Thread Type: BSPT
• End Types: Tubing and BSPT
• Fitting Description: Y-Tube to Male Thread
• No. of Ends: 3
• Fitting Angle: Straight
• Tube O.D.: 6.000 mm
• Size Type: Metric Tube x BSPT Threads
• End Size: 6 mm Tube(f)
• Height: 39.500 mm
• Thread Size: 1/8
• Weight: 0.026 lb
• EAN or UPC: 820099238050
