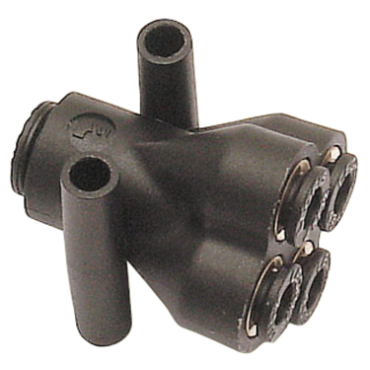

Legris 31440456 Push to Connect Fitting

Product Description

Legris 31440456 is a push-to-connect fitting designed for quick and simple connections in pneumatic systems. It features a body made from glass-filled nylon and connectors constructed of nickel-plated brass. Buna-nitrile elastomer seals provide a leak-free connection. This fitting accommodates semirigid plastic tubing and requires minimal effort for installation and removal.

• Max working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Reusable and does not deform tubing

Product Highlights

This fitting is ideal for connecting nylon, polyurethane, polyethylene, or Teflon tubing in various applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 31440456

Technical Specifications

• Fitting Angle: Straight
• Origin: Plastic Push to Connect Fittings
• No. of Ends: 5
• End Types: Tubing
• Material: Nylon Body
• Tube O.D. 2: 1/4 in
• End Size: 5/32 or 4 mm Tube(f)
• Size Type: Fractional Sizes
• Tube O.D. 1: 5/32 in, 4 mm
• Fitting Description: Double Y Union w/ Mounting Holes
• Overall Length: 1.47 in
• Height: 0.870 in
• Weight: 0.028 LB
• EAN or UPC: 820099798592
