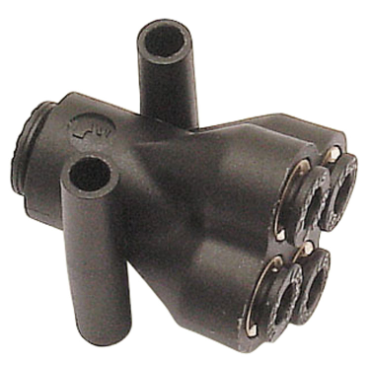

Legris 31440406 Push to Connect Fitting

Product Description

Legris 31440406 is a push-to-connect fitting designed for connecting semirigid plastic tubing in pneumatic applications. Constructed from glass-filled nylon, this fitting features nickel-plated brass threaded components and buna-nitrile elastomer seals. It achieves a secure, leak-free connection by pushing the tubing into a patented stainless steel gripping ring. The design includes a plastic release button, allowing connections or disconnections with minimal force and no tools required. This fitting is reusable and does not deform the tubing, making it ideal for nylon, polyurethane, polyethylene, or Teflon tubing.

• Double Y fitting for 5/32 inch or 4 mm O.D. tubing to 6 mm O.D. tubing.
• Maximum working pressure: 290 psi.
• Operating temperature range: -4 °F to 175 °F.

Product Highlights

Legris push-to-connect fittings are easy to use and reliable for various pneumatic systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 31440406

Technical Specifications

• Maximum working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Height: 25.500 mm
• Weight: 0.059 LB
• Material: Nylon Body
• End Types: Tubing
• Tube O.D. 1: 5/32 in, 4 mm
• Tube O.D. 2: 6 mm
• Fitting Angle: Straight
• No. of Ends: 5
