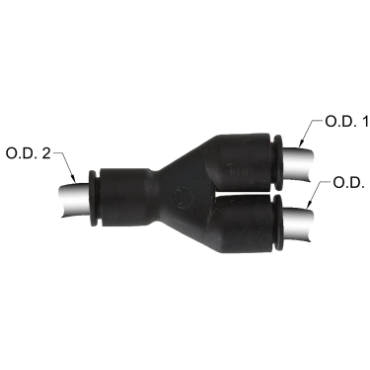

Legris 31405660 Union Y Push-to-Connect Fitting

Product Description

Legris 31405660 is a Union Y push-to-connect fitting, designed for seamless connections in pneumatic systems. This fitting is suitable for connecting semirigid plastic tubing with a dimension of one fourth inch and three eighths inch outside diameter. The construction includes glass-filled nylon for the body and nickel-plated brass for the threaded components. Buna-nitrile seals ensure a leak-proof connection, simply achieved by pushing the tubing into the patented stainless steel gripping ring. A plastic release button facilitates easy disconnection without tools.

• Easy push-to-connect design
• Reusable and compatible with multiple tubing types
• Low force required for connections

Product Highlights

This fitting is ideal for quick and reliable connections, suitable for applications requiring minimal maintenance and high efficiency.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31405660

Technical Specifications

• Body Material: Nylon
• Fitting Description: Union Y
• Overall Length: 1.310 inches
• Maximum Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• End Size: 1/4 Tube(f)
• Tube O.D. 1: 1/4 inches
• Tube O.D. 2: 3/8 inches
• Number of Ends: 3
• Fitting Angle: Straight
• Weight: 0.031 lbs
• EAN or UPC: 820099615516
