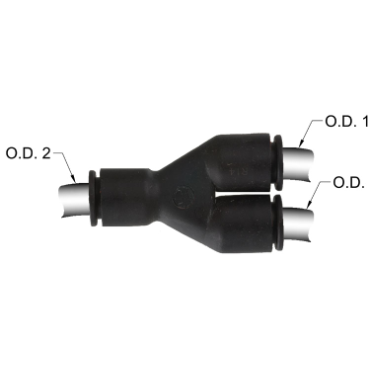

Legris 31405356 Push to Connect Fitting

Product Description

The Legris 31405356 is a push to connect fitting designed for efficient connections in pneumatic applications. This fitting allows seamless transitions between one eighth inch and one quarter inch outer diameter tubing. It is constructed to handle demanding environments while ensuring reliable performance.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This fitting is designed for rapid assembly and disassembly, making it ideal for both permanent and temporary installations.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31405356

Technical Specifications

• Overall Length: 1.42 inches
• Material: Nylon Body
• Tube O.D. 1: 1/8 inches
• No. of Ends: 3
• End Types: Tubing
• Fitting Angle: Straight
• Size Type: Fractional, Unequal Ends
• Fitting Description: Union Y
• Origin: Plastic Push to Connect Fittings
• End Size: 1/8 Tube (f)
• Height: 0.870 inches
• Tube O.D. 2: 1/4 inches
• Weight: 0.012 lb
• EAN or UPC: 820099667270
