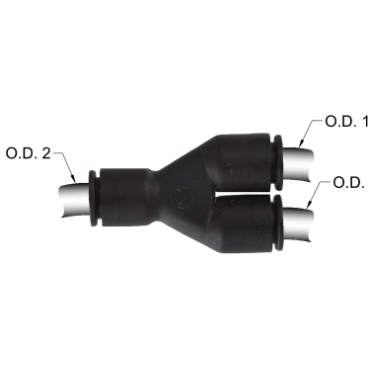

Legris 31401000 Union Y Push-to-Connect Fitting

Product Description

Legris 31401000 is a Union Y fitting designed for use with ten millimeter outer diameter tubing. This push-to-connect fitting simplifies the connection of semirigid plastic tubing in pneumatic systems. The body is made from glass-filled nylon, while threaded components feature nickel-plated brass for durability. Buna-nitrile elastomer seals provide a tight, leak-free connection.

• Easy push-to-connect mechanism
• Reusable and does not deform the tubing
• Compatible with nylon, polyurethane, polyethylene, or Teflon tubing

Product Highlights

Legris 31401000 features a patented gripping ring that secures the tubing in place without the need for tools. A plastic release button makes disconnections easy and requires minimal force.

Product Information

Standard Information

• Brand: Legris
• MPN: 31401000

Technical Specifications

• No. of Ends: 3
• End Types: Tubing
• Tube O.D.: 10.000 mm
• Fitting Angle: Straight
• End Size: 10 mm Tube (f)
• Height: 33.000 mm
• Fitting Description: Union Y
• Origin: Plastic Push to Connect Fittings
• Overall Length: 53.000 mm
• Body Material: Nylon
• Size Type: Metric, Equal
• Material: Nylon Body
• Weight: 0.044 LB
• EAN or UPC: 820099236124
