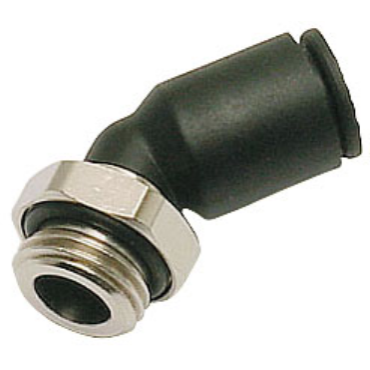

Legris 31330410 Push to Connect Fitting

Product Description

The Legris 31330410 is a push-to-connect fitting designed for efficient connection and flexibility in various applications. This fitting is suitable for four millimeter outer diameter tubing and features a one eighth male BSPP thread for secure installation.

• 45° male elbow design;
• Maximum working pressure of 290 psi;
• Temperature range of -4 °F to 175 °F;

Product Highlights

This fitting allows for ease of assembly and adaptability in installations.

Product Information

Standard Information

• Category: Push-to-Connect Fittings
• Brand: Legris

Technical Specifications

• Fitting Angle: 45°
• Material: Nylon body with O ring seal, nickel-plated brass base
• Overall Length: 13 mm
• Origin: Plastic Push to Connect Fittings
• Size Type: Metric Tube x BSPP Threads
• End Types: Tubing & BSPP
• Tube O.D.: 4 mm, 5/32 in
• Thread Size: 1/8
• Hex Size: 13 mm
• Thread Type: BSPP
• End Size: 5/32 or 4 mm Tube (f)
• Fitting Description: 45° Male Elbow
• No. of Ends: 2
• Height: 25.000 mm
• Weight: 0.017 LB
• EAN or UPC: 820099233529
