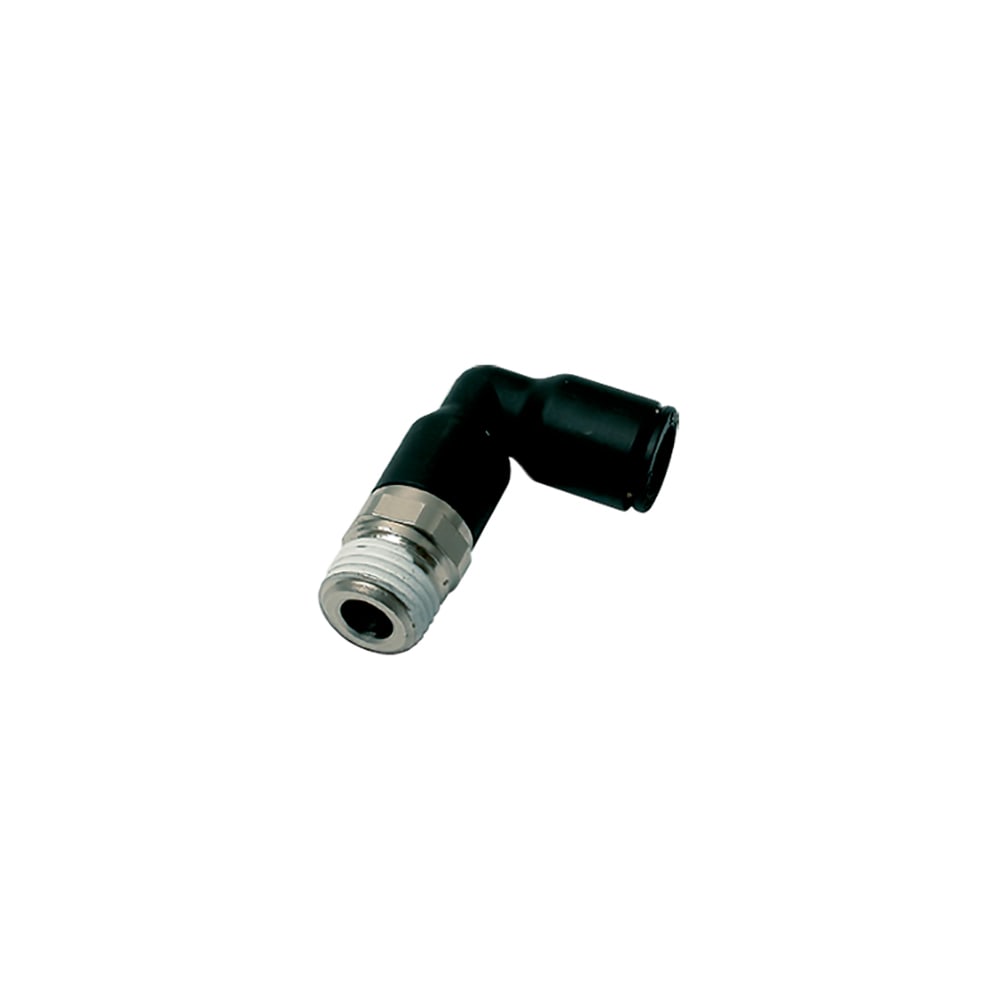

Legris 31291213 Push to Connect Fitting

Product Description

The Legris 31291213 is a push to connect fitting designed for use with twelve millimeter tubing. This product features a one-quarter male BSPT thread, making it suitable for various plumbing and fluid handling applications.

• Extended male elbow for 12mm O.D. tubing.
• One-quarter male BSPT thread.
• 90-degree fitting angle.

Product Highlights

This fitting allows quick installation and a secure connection for pneumatic and fluid systems. Offers flexibility in tight spaces due to its innovative elbow design.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31291213

Technical Specifications

• Thread Type: BSPT
• Height: 45.500 mm
• Thread Size: 1/4
• Hex Size: 19 mm
• Fitting Description: Extended Male Elbow
• No. of Ends: 2
• Fitting Angle: 90 degrees
• Tube O.D.: 12.000 mm
• Origin: Plastic Push to Connect Fittings
• Overall Length: 40.5 mm
• End Size: 12 mm Tube(f)
• End Types: Tubing & BSPT
• Material: nylon body, nickel-plated brass base, pre-applied thread sealant
• Weight: 0.077 lb
• EAN or UPC: 820099232416
