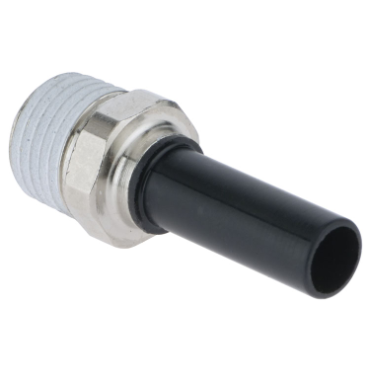

Legris 31210813 Push to Connect Fitting

Product Description

The Legris 31210813 is a push to connect fitting designed for easy installation and secure connections. This fitting is made for 8mm outer diameter tubing and features a quarter-inch male BSPT thread for versatility in various applications.

• Male standpipe for 8mm outer diameter tubing
• Quarter-inch male BSPT thread
• Durable nylon probe with nickel-plated brass base

Product Highlights

The Legris push to connect fitting simplifies the process of connecting tubing to other components. Its design ensures leak-proof connections, making it suitable for pneumatic systems and fluid transfer.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31210813

Technical Specifications

• Thread Size: 1/4
• End Types: Tubing & BSPT
• Number of Ends: 2
• Fitting Angle: Straight
• Material: Nylon probe, nickel-plated brass base, pre-applied thread sealant
• Height: 28.5 mm
• Fitting Description: Male Standpipe
• Thread Type: BSPT
• End Size: 5/16 or 8 mm Tube(f)
• Hex Size: 14 mm
• Tube O.D.: 8.0 mm
• Origin: Plastic Push to Connect Fittings
• Weight: 0.017 LB
• EAN or UPC: 820099228808
