Legris 31130817 Push to Connect Fitting

Product Description

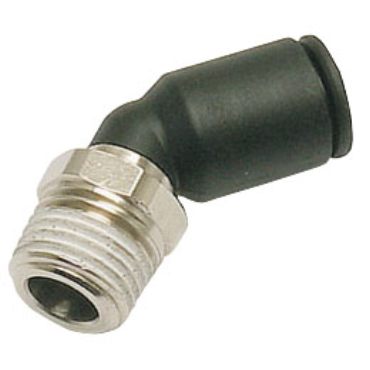

The Legris 31130817 is a push to connect fitting designed for easy and reliable connections. It features a 45-degree male elbow suited for eight millimeter outer diameter tubing, making it a versatile choice for various applications.

• Maximum working pressure: 290 psi
• Working temperature: -4 degrees Fahrenheit to 175 degrees Fahrenheit
• Rotates 360 degrees for ease of assembly

Product Highlights

This fitting simplifies installation with its pre-applied thread sealant on tapered threads.

Product Information

Standard Information

• Brand: Legris
• MPN: 31130817

Technical Specifications

• Body Material: Nickel-Plated Brass
• Origin: Plastic Push to Connect Fittings
• End Size: 5/16 or 8 mm Tube(f)
• Thread Size: 3/8
• End Types: Tubing & BSPT
• Fitting Angle: 45 degrees
• Thread Type: BSPT
• No. of Ends: 2
• Overall Length: 19.5 mm
• Height: 33.500 mm
• Size Type: Metric Tube x BSPT Threads
• Fitting Description: 45 degrees Male Elbow
• Tube O.D.: 5/16 inches, 8.000 mm
• Hex Size: 17 mm
• Weight: 0.046 LB
• EAN or UPC: 820099223193
