Legris 31130610 Push to Connect Fitting

Product Description

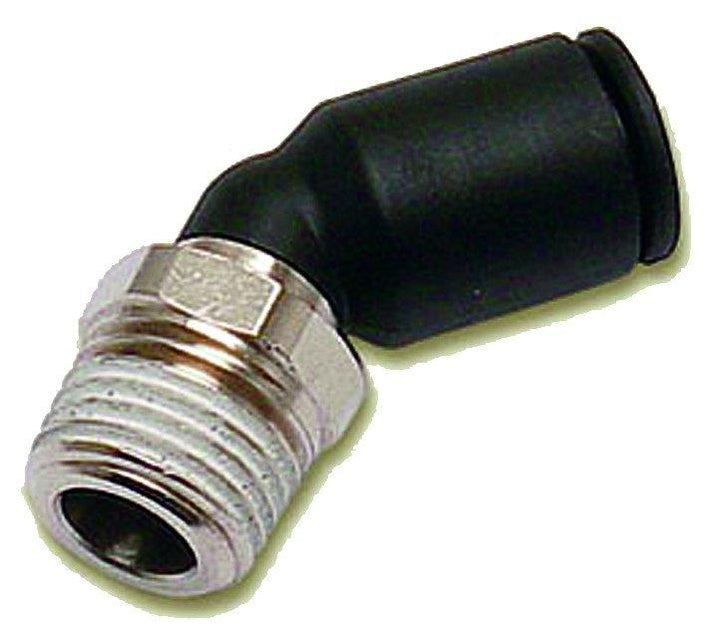

The Legris 31130610 is a push to connect fitting designed for efficient fluid transfer. This fitting features a 45-degree male elbow suitable for six millimeter outer diameter tubing and a one eighth male BSPT connection. It is ideal for use in applications requiring reliable connections in pneumatic systems.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

The fitting rotates three hundred sixty degrees for easy installation and comes with thread sealant pre-applied on tapered threads. This enhances the durability and effectiveness of the connection.

Product Information

Standard Information

• Brand: Legris
• MPN: 31130610

Technical Specifications

• No. of Ends: 2
• Fitting Description: 45° Male Elbow
• End Types: Tubing & BSPT
• Hex Size: 10 mm
• Material: Nickel-Plated Brass
• Body Material: Nickel-Plated Brass
• Thread Size: 1/8
• Origin: Plastic Push to Connect Fittings
• Height: 28.000 mm
• Overall Length: 14.5 mm
• End Size: 6 mm Tube(f)
• Tube O.D.: 6.000 mm
• Fitting Angle: 45°
• Thread Type: BSPT
• Size Type: Metric Tube x BSPT Threads
• Weight: 0.017 LB
• EAN or UPC: 820099223063
