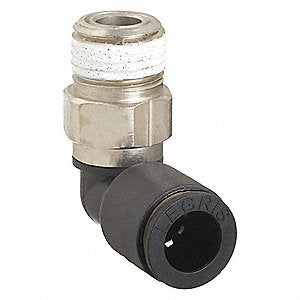

Legris 31091014 90 Male Elbow

Product Description

The Legris 31091014 is a 90-degree male elbow fitting designed for push-to-connect applications. This fitting is essential in various piping setups, providing secure connections at an angle. It accommodates a tube outer diameter of ten millimeters and is suitable for use with nickel-plated brass materials.

• Max working pressure of 290 psi
• 360-degree rotation for easy assembly
• Compatible with NPT thread type

Product Highlights

The fitting features a vacuum rating of 28 Hg, working temperature ranging from -4 degrees Fahrenheit to 175 degrees Fahrenheit, and comes with a thread sealant pre-applied on tapered threads for added reliability.

Product Information

Standard Information

• Brand: Legris
• Part #: 31091014

Technical Specifications

• Tube O.D.: 10 mm
• Fitting Type: Stud Fitting
• Thread Type: NPT
• Origin: Plastic Push to Connect Fittings
• Hex Size: 15 mm
• Height: 23 mm
• Fitting Description: 90 Male Elbow
• Length: 26.5 mm
• Size Type: Hybrid Sizes – Fractional Tube x BSPT Threads
• Material: Nickel-Plated Brass
• Body Material: Nickel-Plated Brass
• No. of Ends: 2
• Thread Size: 1/4
• Fitting Angle: 90, Swivel
• Weight: 0.035 lb
• EAN or UPC: 820099221083
