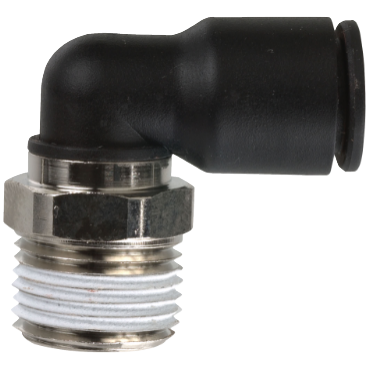

Legris 31090813 90 Male Elbow

Product Description

The Legris 31090813 is a 90 degree male elbow fitting. This product connects semirigid plastic tubing in pneumatic systems efficiently. It features a body made from glass-filled nylon and nickel-plated brass components. Buna-nitrile seals ensure a leak-free connection, achieved by simply pushing the tubing into the stainless steel grip ring. A plastic release button allows for easy disconnection without tools. The fitting is reusable and does not deform the tubing.

• Fits 5/16 or 8 mm outer diameter tubing
• 1/4 male BSPT thread
• Maximum working pressure of 290 psi

Product Highlights

This fitting is ideal for connecting pneumatic applications with minimal effort. It rotates 360 degrees for easier installation and is designed to work under various temperature and pressure conditions.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31090813

Technical Specifications

• No. of Ends: 2
• Thread Size: 1/4
• Material: Nickel-Plated Brass
• Fitting Angle: 90 degrees
• Height: 18.000 mm
• End Size: 5/16 or 8 mm Tube(f)
• Hex Size: 14 mm
• Fitting Description: 90 degree Male Elbow
• Origin: Plastic Push to Connect Fittings
• Size Type: Metric Sizes
• Tube O.D.: 5/16 in, 8.000 mm
• End Types: Tubing & BSPT
• Body Material: Nickel-Plated Brass
• Thread Type: BSPT
• Weight: 0.033 LB
• EAN or UPC: 820099220697
