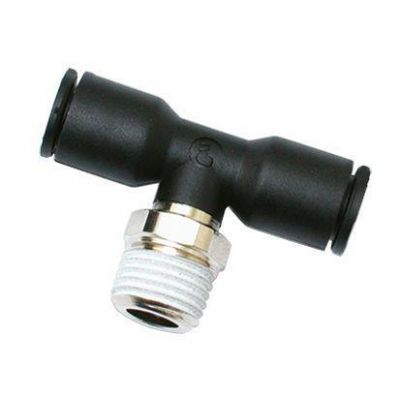

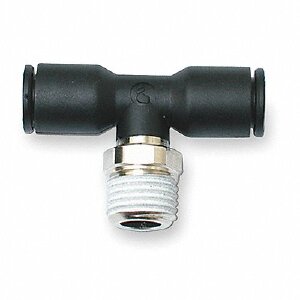

Legris 31086017 Push to Connect Fitting

Product Description

Legris 31086017 is a push-to-connect fitting specifically designed for semirigid plastic tubing in pneumatic applications. It allows for efficient and easy connections with minimal labor required. The body is made of glass-filled nylon, and the threaded components are constructed from nickel-plated brass. This fitting achieves a tight seal using a patented stainless steel gripping ring, ensuring leak-free connections. Disconnection is also straightforward with a plastic release button, eliminating the need for tools. The fitting is compatible with nylon, polyurethane, polyethylene, and Teflon tubing.

• Connects to 3/8 inch outer diameter tubing.
• Features a maximum working pressure of 290 psi.
• Includes a vacuum rating of 28 inches of mercury.

Product Highlights

Ideal for HVAC professionals and plumbers, this fitting provides quick and reliable connections in various applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 31086017

Technical Specifications

• Height: 0.950 inches
• Weight: 0.15 pounds
• End Types: Tubing & BSPT
• End Size: 3/8 Tube(f)
• Thread Size: 3/8
• Fitting Angle: 90 degrees
• Thread Type: BSPT
• No. of Ends: 3
• Tube O.D.: 3/8 inches
• Fitting Description: Male Branch Tee
• EAN or UPC: 820099219417
