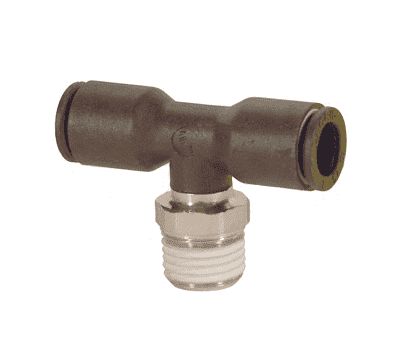

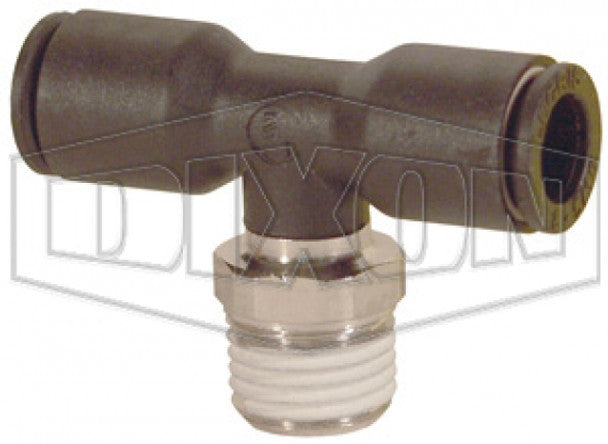

Legris 31080413 Push to Connect Fitting

Product Description

The Legris 31080413 is a push-to-connect fitting designed for semi-rigid plastic tubing in pneumatic systems. It is ideal for quick connections that require minimal effort. The body is made from glass-filled nylon and the threaded parts are nickel-plated brass. Buna-nitrile seals enhance the fitting's performance by ensuring a leak-free connection. The tubing simply needs to be pushed into the patented stainless steel gripping ring for a secure fit. Each fitting also features a plastic release button for ease of disconnection, which can be done without tools. This fitting is reusable and compatible with nylon, polyurethane, polyethylene, or Teflon tubing.

• Designed for 5/32 or 4 mm outer diameter tubing
• 1/4 male BSPT thread for standard compatibility
• Max working pressure of 290 psi

Product Highlights

This fitting rotates 360 degrees to facilitate easy assembly and complies with RoHS regulations. It operates effectively in temperatures between -4 °F and 175 °F.

Product Information

Standard Information

• Brand: Legris
• MPN: 31080413

Technical Specifications

• End Size: 5/32 or 4 mm Tube(f)
• Fitting Description: Male Branch Tee
• Thread Type: BSPT
• Origin: Plastic Push to Connect Fittings
• No. of Ends: 3
• Size Type: Metric Tube x BSPT Threads
• Tube O.D.: 4.000 mm, 5/32 in
• Material: Nylon body, nickel-plated brass base
• End Types: Tubing & BSPT
• Thread Size: 1/4
• Fitting Angle: 90°
• Height: 16.000 mm
• Hex Size: 14 mm
• Weight: 0.033 LB
• EAN or UPC: 820099217741
