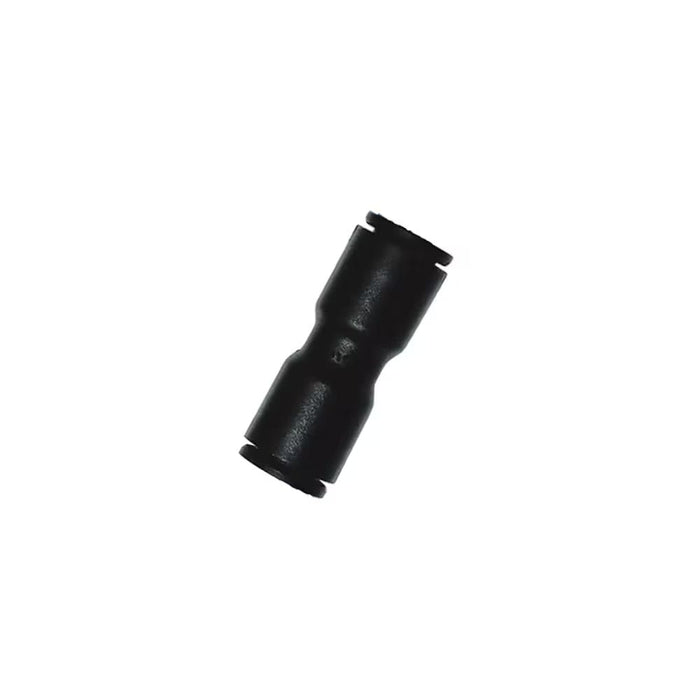

Legris 31065304 Push to Connect Fitting

Product Description

Legris 31065304 is a push-to-connect fitting designed for efficient connections of semirigid plastic tubing in pneumatic systems. This fitting is constructed from glass-filled nylon, and its threaded components are made of nickel-plated brass. Buna-nitrile elastomer seals ensure a reliable connection.

• Max working pressure of 290 psi
• Working temperature range of -4 to 175 degrees Fahrenheit
• Easy installation with no tools required

Product Highlights

The Legris 31065304 fitting is ideal for quick and secure tubing connections. The stainless steel gripping ring provides a leak-tight seal that can be achieved just by pushing the tubing in. It features a standard plastic release button for easy disconnection.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31065304

Technical Specifications

• Tube O.D. 1: 1/8 inch
• Tube O.D. 2: 5/32 inch, 4 mm
• No. of Ends: 2
• End Types: Tubing
• Material: Nylon Body
• Fitting Angle: Straight
• Fitting Description: Straight Union
• Overall Length: 0.96 inch
• Weight: 0.007 LB
• UPC: 820099611402
