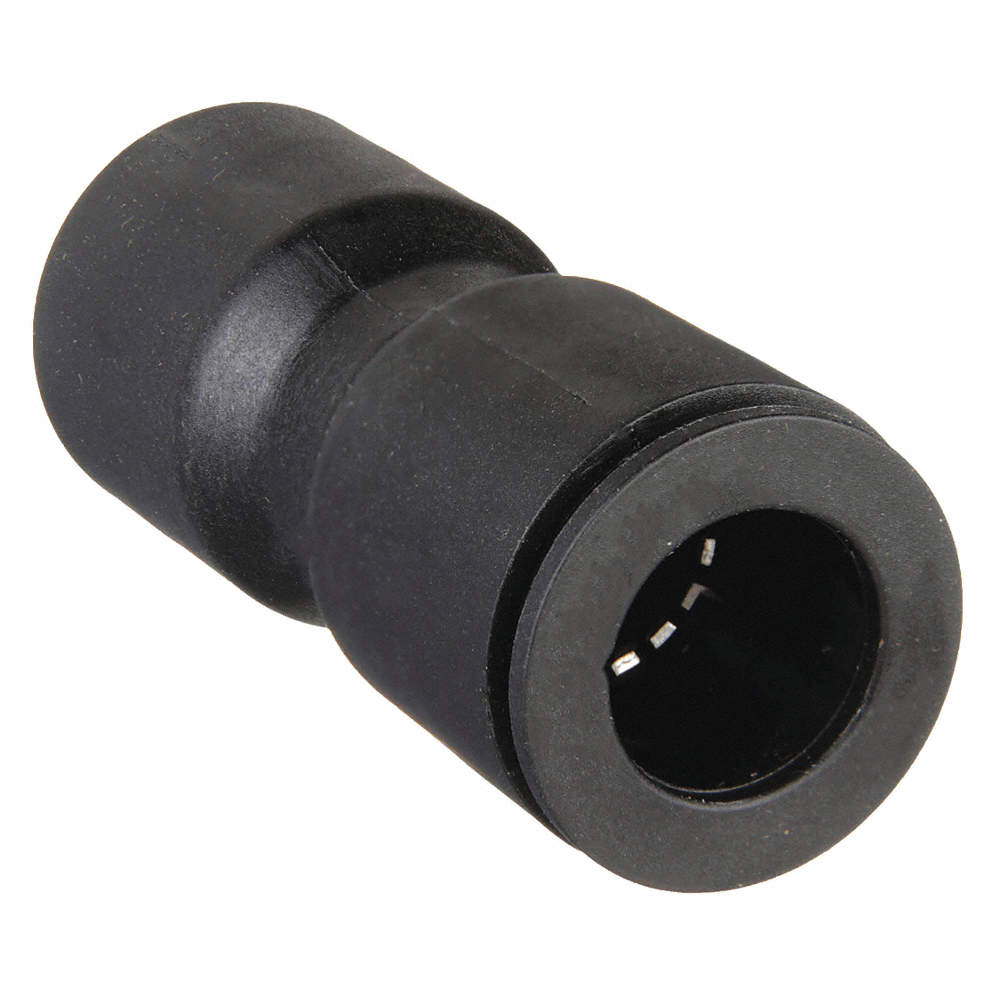

Legris 31061012 Straight Union Push to Connect Fitting

Product Description

The Legris 31061012 is a straight union fitting designed for reliable tube-to-tube connections. This fitting is compatible with 10 mm and 12 mm outer diameter tubes. Made from composite materials, it provides durability and resistance to various working conditions.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

Ideal for applications requiring secure tube connections, the Legris straight union is easy to install and use.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31061012

Technical Specifications

• Overall Length: 50.500 mm
• Fitting Angle: Straight
• Tube O.D. 1: 10 mm
• Body Material: Nylon
• End Types: Tubing
• Tube O.D. 2: 12 mm
• Size Type: Metric, Unequal Ends
• No. of Ends: 2
• Material: Composite
• Fitting Description: Straight Union
• End Size: 10 mm Tube(f)
• Origin: Plastic Push to Connect Fittings
• Weight: 0.048 LB
• EAN or UPC: 820099216492
