Legris 31060400 Straight Union

Product Description

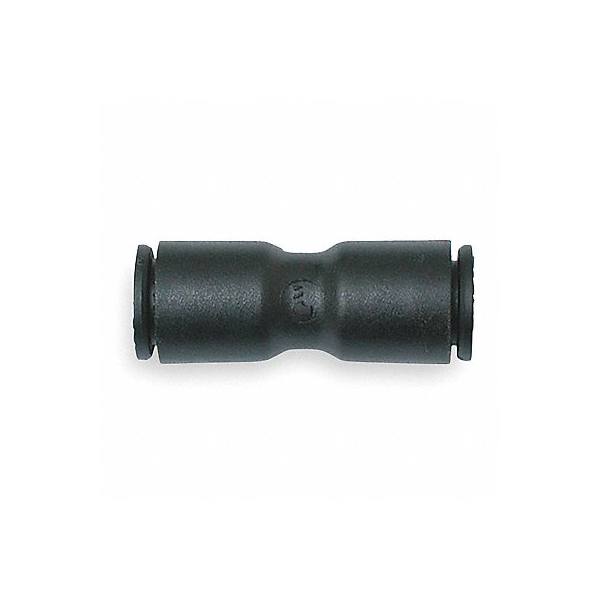

The Legris 31060400 is a straight union fitting designed for use with 5/32 or 4 mm outer diameter tubing. This fitting is suitable for various applications where a secure connection is required. The maximum working pressure is 290 psi, and it operates effectively in temperatures ranging from -4 degrees Fahrenheit to 175 degrees Fahrenheit. It is rated for vacuum applications up to 28 inches of mercury.

• Suitable for 5/32 or 4 mm tubing
• Max working pressure of 290 psi
• Temperature range of -4 to 175 degrees Fahrenheit

Product Highlights

This straight union offers reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Legris
• MPN: 31060400

Technical Specifications

• Fitting Angle: Straight
• Origin: Plastic Push to Connect Fittings
• End Size: 5/32 or 4 mm Tube (f)
• Material: Nylon Body
• Fitting Description: Straight Union
• Body Material: Nylon
• Tube O.D.: 4.000 mm, 5/32 in
• No. of Ends: 2
• End Types: Tubing
• Size Type: Fractional, Equal Ends
• Weight: 0.004 LB
• EAN or UPC: 820099214863
