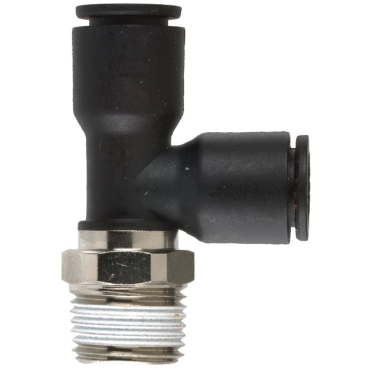

Legris 31036214 Push to Connect Fitting

Product Description

Legris 31036214 is a push-to-connect fitting designed for connecting semirigid plastic tubing in pneumatic applications. This fitting features a body made of glass-filled nylon. The threaded components have a nickel-plated brass finish and the elastomer seals consist of buna-nitrile. A reliable, leak-free connection is achieved by inserting the tubing into the patented stainless steel gripping ring. Fittings come with a plastic release button which allows easy connection and disconnection without tools and with minimal force.

• Max working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

These fittings are reusable and do not deform tubing.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31036214

Technical Specifications

• Configuration: Male Run Tee
• Thread Size: 1/4 inch
• End Size: 1/2 Tube(f)
• Tube O.D.: 1/2 in
• No. of Ends: 3
• Thread Type: NPT
• Fitting Angle: 90°
• Weight: 0.115 lb
• UPC: 820099211961
