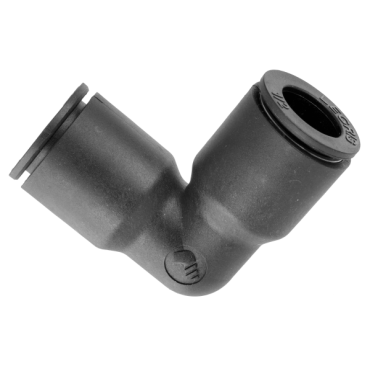

Legris 31021000 90° Union Elbow

Product Description

Legris 31021000 is a 90° Union Elbow fitting designed for use with ten millimeter outer diameter tubing. It simplifies the connection of semi-rigid plastic tubing in pneumatic systems, providing a reliable and fast assembly process. The fitting is made from glass-filled nylon and features nickel-plated brass components along with buna-nitrile seals.

• Compatible with various types of tubing, including nylon, polyurethane, polyethylene, and Teflon.
• Tubing connections are made effortlessly by pushing the tubing into a patented stainless steel gripping ring.
• No tools required for installation or removal, ensuring easy maintenance in tight spaces.

Product Highlights

This union elbow fitting offers maximum working pressure of two hundred ninety psi and operates effectively across a temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

Product Information

Standard Information

• End Types: Tubing
• Fitting Description: 90° Union Elbow

Technical Specifications

• End Size: 10 mm Tube(f)
• Tube O.D.: 10.000 mm
• Origin: Plastic Push to Connect Fittings
• Body Material: Nylon
• No. of Ends: 2
• Fitting Angle: 90°
• Weight: 0.033 LB
• EAN or UPC: 820099608372
