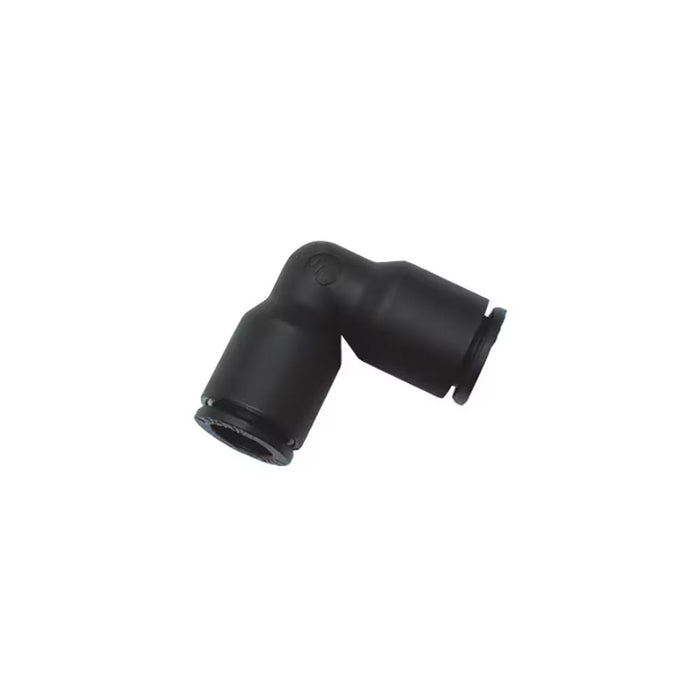

Legris 31020608 Push to Connect Fitting

Product Description

Legris 31020608 is a push-to-connect fitting designed for connecting semirigid plastic tubing in pneumatic systems. This fitting minimizes labor and time. Constructed with a glass-filled nylon body, it is equipped with nickel-plated brass threaded components. Buna-nitrile elastomer seals ensure a reliable, leak-free connection. To install, simply push the tubing into the patented stainless steel gripping ring, making this fitting user-friendly and efficient. A plastic release button allows for easy disconnection without tools, making it reusable.

• Max pressure: 290 psi
• Temperature range: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

Ideal for various tubing types including nylon, polyurethane, polyethylene, and Teflon.

Product Information

Standard Information

• Category: Push-to-Connect Fittings
• Brand: Legris

Technical Specifications

• Fitting Angle: 90°
• Material: Nylon Body
• Size Type: Metric, Unequal Ends
• Tube O.D. 1: 6 mm
• Tube O.D. 2: 5/16 in, 8 mm
• Overall Length: 29.5 mm
• End Size: 6 mm Tube(f)
• No. of Ends: 2
• Fitting Description: 90° Union Elbow
• Weight: 0.015 LB
• EAN or UPC: 820099209302
