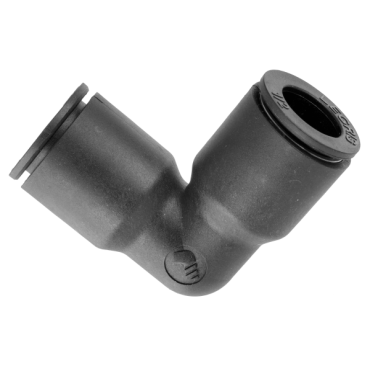

Legris 31020456 Push to Connect Fitting

Product Description

Legris 31020456 is a push-to-connect fitting designed for quick and efficient connections in pneumatic systems. This fitting is ideal for semirigid plastic tubing installations. Its construction includes a glass-filled nylon body and nickel-plated brass threaded components. The sealing is provided by buna-nitrile elastomer seals, ensuring a reliable and leak-free connection.

• Effective for tubing sizes 5/32 inches to 1/4 inches.
• Reusable and tool-free installation.
• Supports a working temperature range of -4 °F to 175 °F.

Product Highlights

This fitting simplifies the installation process by enabling quick connections and disconnections with minimal effort. Its robust design makes it suitable for various pneumatic applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 31020456

Technical Specifications

• Fitting Angle: 90°
• End Size: 5/32 or 4 mm Tube(f)
• Size Type: Fractional, Unequal Ends
• No. of Ends: 2
• Tube O.D. 2: 1/4 in
• Material: Nylon Body
• Overall Length: 0.93 in
• Tube O.D. 1: 5/32 in, 4 mm
