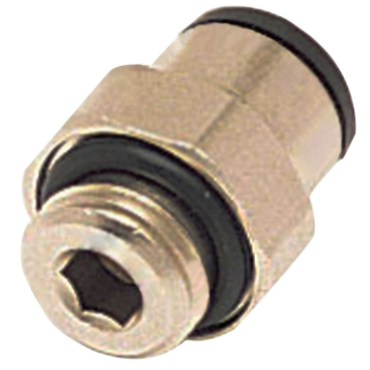

Legris 31010455 Push to Connect Fitting

Product Description

The Legris 31010455 is a push-to-connect fitting designed for use with tubing. It features a male connector suitable for four millimeter outer diameter tubing and has a seven millimeter male metric port size. This fitting is reliable for connecting various components in fluid handling systems.

• Max working pressure of two hundred ninety psi
• Designed for a temperature range of minus four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit
• Vacuum rating of twenty-eight Hg

Product Highlights

This push-to-connect fitting allows for easy and quick connections in tubing applications.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31010455

Technical Specifications

• Fitting Angle: Straight
• End Size: Five thirty-second or four millimeter tube (f)
• Hex Size: Ten mm
• Thread Size: M7
• Tube O.D.: Four millimeter, five thirty-second inch
• Size Type: Metric tube x BSPP threads
• Fitting Description: Male connector
• Origin: Plastic push-to-connect fittings
• Thread Type: Metric
• No. of Ends: Two
• Material: Nickel-plated brass with O ring seal
• End Types: Tubing & Metric thread
• Height: Fourteen mm
• Weight: Zero point zero eleven lb
• EAN or UPC: Eight hundred twenty million ninety-nine thousand two hundred five hundred sixty-three
