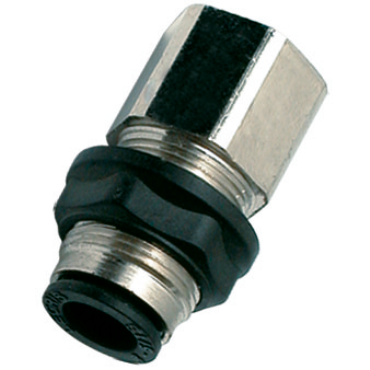

Legris 30366018 Push to Connect Fitting

Product Description

The Legris 30366018 is a push to connect fitting designed for durable and efficient connections. It is suitable for various applications where a reliable connection is needed. This fitting works with both tubing and NPT threads.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This product is created from nickel-plated brass, which ensures strength and corrosion resistance. Its design allows for easy installation with a straight fitting angle.

Product Information

Standard Information

• Brand: Legris
• MPN: 30366018

Technical Specifications

• End Types: Tubing & NPT
• Height: 40.000 mm
• Fitting Angle: Straight
• End Size: 3/8 NPT(f), 3/8 Tube
• Tube O.D.: 3/8 in
• Thread Type: NPT
• No. of Ends: 2
• Origin: Plastic Push to Connect Fittings
• Body Material: Nickel-Plated Brass
• Thread Size: 3/8
• Fitting Description: Female Bulkhead Connector
• Weight: 0.166 LB
• EAN or UPC: 820099798455
