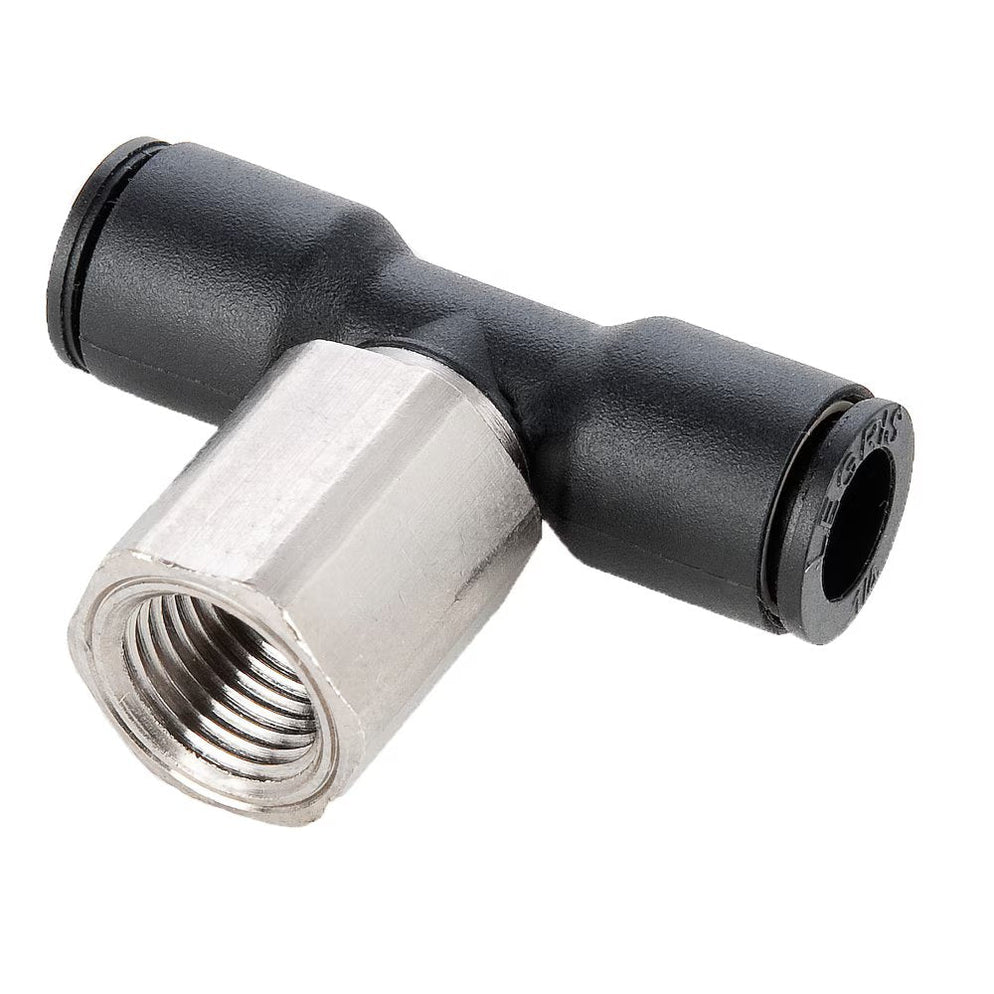

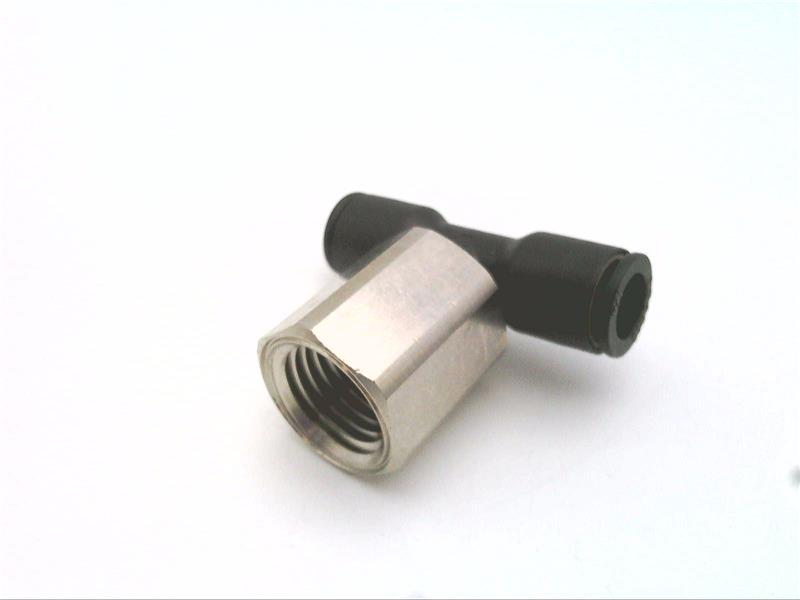

Legris 3008 56 14 Modular Manifold

Product Description

Legris 30085614 Modular Manifold is essential for pneumatic applications. It connects semirigid plastic tubing efficiently using minimal labor. This fitting features a body made from glass-filled nylon, with nickel-plated brass components and buna-nitrile seals. Push-to-connect technology allows for swift and leak-free connections by simply pushing the tubing into the stainless steel gripping ring. Each fitting includes a plastic release button for easy disconnection without tools. Designed for durability, these fittings do not deform tubing and can be reused with nylon, polyurethane, polyethylene, or Teflon tubing.

• Push-to-connect technology simplifies installation
• Nickel-plated brass components
• Max working pressure of 275 psi

Product Highlights

Legris fittings are known for reliability and ease of use in various industrial settings.

Product Information

Standard Information

• Brand: Legris
• Part Number: 30085614

Technical Specifications

• Fitting Description: Female Branch Tee
• Size Type: Fractional Sizes
• End Size: 1/4 Tube(f)
• Thread Type: NPT
• Origin: Plastic Push to Connect Fittings
• End Types: Tubing & NPT
• Fitting Angle: 90 degrees
• Tube O.D.: 1/4 in
• No. of Ends: 3
• Thread Size: 1/4
• Weight: 0.052 LB
• EAN or UPC: 820099638522
