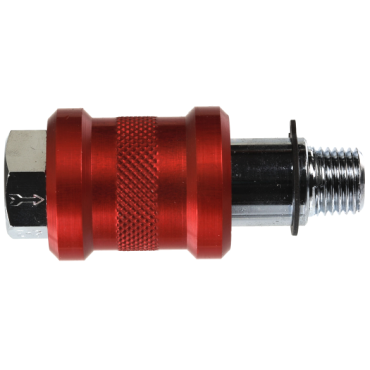

Legris 06610714 Slide Valve 1/4 NPT Thread

Product Description

The Legris 06610714 Slide Valve is designed for efficient air line isolation. This product allows for immediate venting of system air to the atmosphere when necessary. By sliding the sleeve, the valve controls air flow direction effectively. This simple mechanism can shut off the supply and allow downstream air to exhaust when moved in the opposite direction.

• Compact design for easy integration.
• Male/Female connection type.
• 1/4 NPT thread for standard fitting.

Product Highlights

This slide valve provides reliable air management for various pneumatic applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 06610714

Technical Specifications

• Body Material: Nickel-Plated Brass
• Sleeve Material: Anodized Aluminum
• Overall Length: 2.75 inches
• Seal Material: Buna-N
• Orifice Size: 0.27 inches
• Direction of Flow: One-Way
• Working Pressure [Max]: 230 psi
• Connection Type: Non-Lockable Slide Valve – Male/Female
• Thread Type: NPT
• Sleeve Diameter: 1.18 inches
• Thread Size: 1/4
• Weight: 0.286 lb
• EAN or UPC: 820099147994
