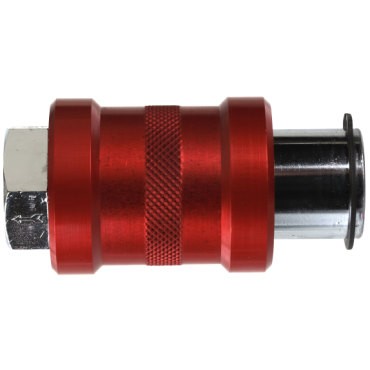

Legris 06600714 Slide Valve - 1/4 NPT Thread

Product Description

The Legris 06600714 Slide Valve is a non-lockable double female valve designed for quick isolation of air lines. This valve allows for venting the system air to the atmosphere. By moving the sleeve in one direction, air flows freely through the valve. Moving the sleeve in the opposite direction shuts off the supply and allows downstream air to exhaust.

• Double female slide valve for easy connection
• 1/4 NPT thread for standard pipe fittings
• Durable construction suitable for various environments

Product Highlights

This slide valve features a compact design and can be directly installed in most air circuits, making it ideal for trade professionals needing reliable isolation valves in their systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 06600714

Technical Specifications

• Connection Type: Non-Lockable Slide Valve – Double Female
• Direction of Flow: One-Way
• Seal Material: Buna-N
• Sleeve Material: Anodized Aluminum
• Working Pressure [Max]: 230 psi
• Thread Type: NPT
• Thread Size: 1/4
• Body Material: Nickel-Plated Brass
• Weight: 0.232 LB
• EAN or UPC: 820099147857
