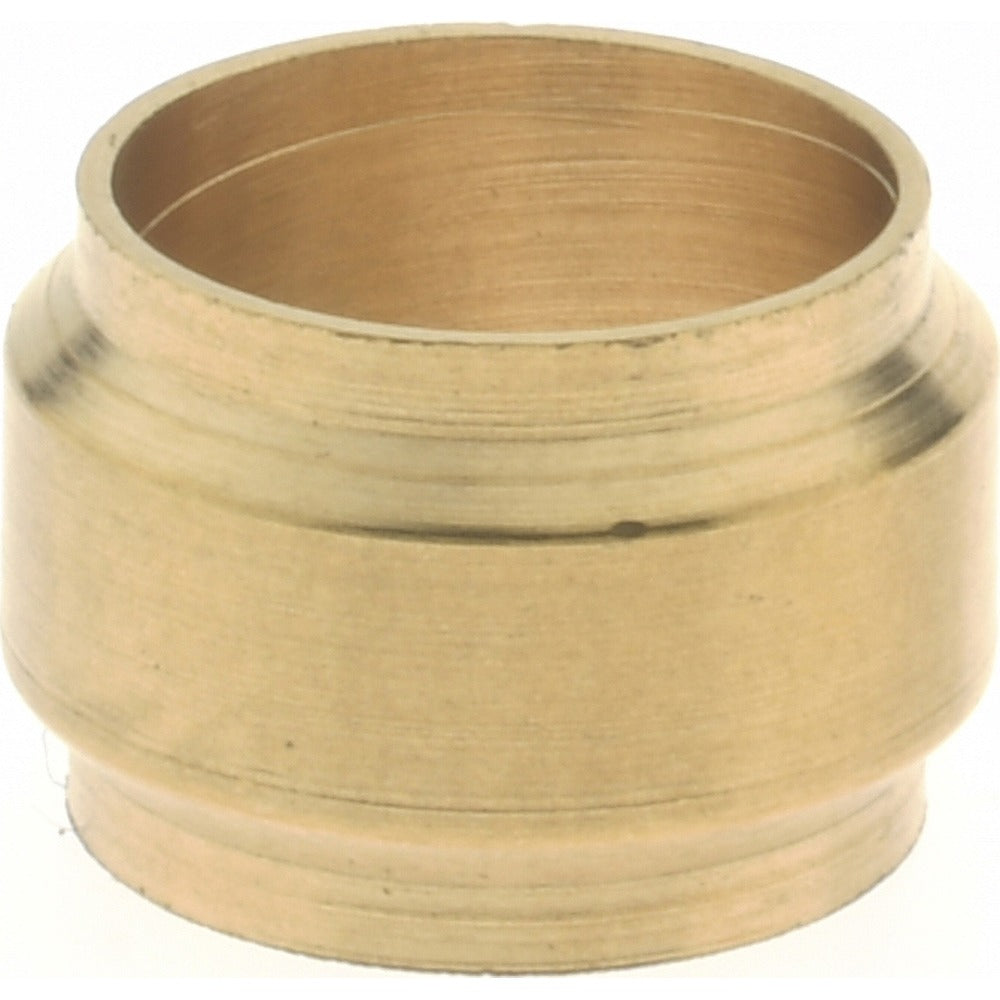

Legris 0124 08 00 Compression Tube Sleeve Brass

Product Description

The LEGRIS 0124 08 00 is a brass compression tube sleeve designed to join two compression-end tube connections in pneumatic and fluid distribution systems. The sleeve accepts 8mm outside diameter tubing and is rated to 320 psi maximum working pressure. It operates across a wide temperature range of -40 degrees F to 210 degrees F, making it suitable for both indoor and outdoor service environments. Licensed plumbers, pipefitters, and industrial maintenance technicians install this fitting in compressed air, water, and compatible fluid lines where a secure, leak-resistant compression joint is required. The all-brass construction provides corrosion resistance and mechanical durability in demanding service conditions.

This fitting is suited for light industrial, commercial, and residential applications where compression-style tube connections are the specified end type. Typical use cases include instrument air lines, pneumatic control circuits, and fluid distribution manifolds using 8mm OD tubing. The sleeve functions as a union-style coupler, allowing two tube ends to be joined without soldering, threading, or special tooling beyond a standard wrench. It is well-suited for panel assemblies and tight-space installations where a low-profile brass sleeve is preferred over bulkier fitting styles.

Key Features

• Compression x compression end connections accept 8mm OD tubing on both sides
• Brass construction provides corrosion resistance and long service life
• Rated to 320 psi maximum working pressure
• Wide operating temperature range: -40 degrees F to 210 degrees F
• Meets ATEX, PED, Prop 65, REACH, RoHS, and WEEE compliance standards
• Compact sleeve form factor suited for space-constrained installations

Compatibility

Designed as an OEM-style compression sleeve for systems using 8mm outside diameter tubing with compression-style end connections in pneumatic and fluid distribution applications.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or industrial maintenance technician familiar with compression fitting assembly. Depressurize and isolate the line fully before disassembling or installing any compression fitting. Use an appropriately sized wrench to tighten the compression nut to a snug, leak-free torque without overtightening, which can deform the ferrule or damage the tubing. Verify that tubing is cut cleanly and squarely and is free of burrs before inserting into the fitting.
