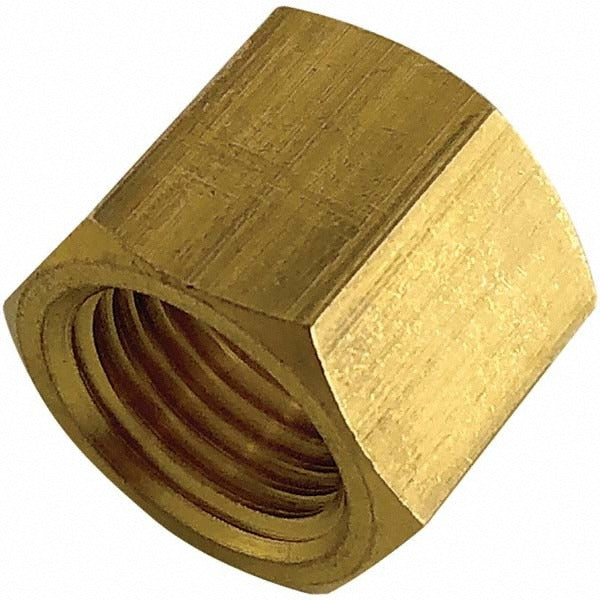

Legris 0110 14 00 Compression Tube Nut Brass

Product Description

The LEGRIS 0110 14 00 is a brass compression tube nut designed for use in fluid and pneumatic line connections where a secure, leak-resistant tube fitting is required. This nut serves as the threaded locking component in a compression fitting assembly, drawing the ferrule or sleeve against the tube outside diameter to form a tight mechanical seal. Rated for a maximum working pressure of 652 psi and a temperature range of -40 degrees F to 250 degrees F, it is suited for demanding service environments. Licensed plumbers and mechanical contractors are the primary installers.

This compression tube nut is used in residential and commercial fluid system applications involving tubing with a 14mm outside diameter. Common install scenarios include pneumatic control lines, instrument air tubing, and general plumbing or hydraulic service where brass compression hardware is specified. It is sold individually and intended as a direct replacement or supplemental fitting in compression-style tube assemblies.

Key Features

• Brass construction offers corrosion resistance and reliable torque performance on compression fitting assemblies
• Rated to 652 psi maximum working pressure for use in pressurized fluid and pneumatic systems
• Wide service temperature range: -40 degrees F to 250 degrees F
• Fits 14mm tube outside diameter compression fitting configurations
• Compact form factor: approximately 0.94 inches wide and 0.59 inches in height and length

Compatibility

Designed as an OEM-style replacement or service fitting for compression tube assemblies using 14mm outside diameter tubing.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical technician familiar with compression fitting assembly procedures. Shut off and depressurize the line completely before disassembling or installing any compression fitting component. Hand-tighten the nut onto the fitting body first, then use an appropriately sized open-end or adjustable wrench to achieve a proper seated connection. Do not overtighten, as brass fittings can be damaged by excessive torque.
