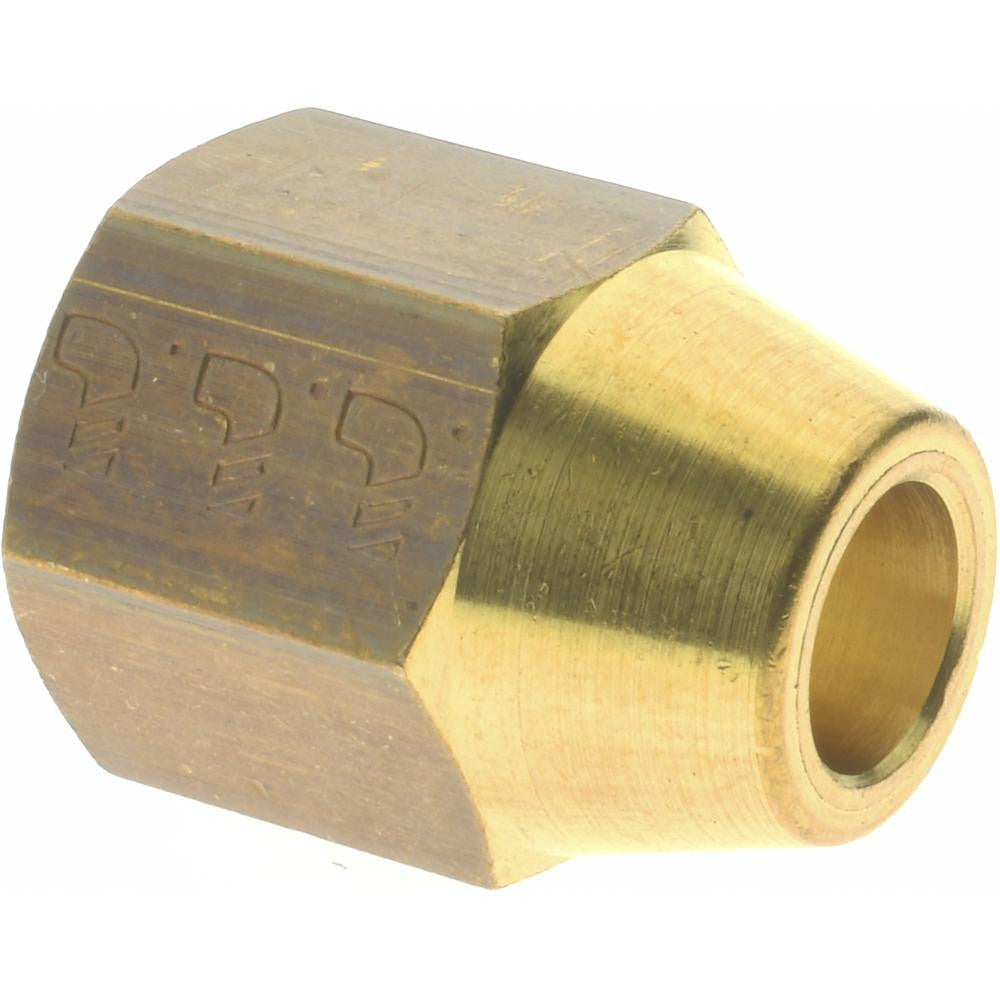

Legris 0110 08 00 60 Compression Taper Nut Brass

Product Description

The LEGRIS 0110 08 00 60 is a brass compression taper nut designed for use in pneumatic and fluid-handling tube assemblies. This fitting secures tubing at compression joints by threading onto a mating compression body, creating a reliable mechanical seal without the need for additional sealants. Engineered for an 8mm outside diameter tube, it operates across a wide temperature range from -40 degrees F to 210 degrees F and holds a maximum working pressure of 320 psi. The brass construction provides corrosion resistance suitable for compressed air, water, and light hydraulic service. Plumbing and fluid-system technicians install this fitting during assembly or field repair of compression-style tubing runs.

This taper nut is suited for residential and light commercial pneumatic systems, instrumentation lines, and general fluid-distribution plumbing where compression-style tube fittings are specified. It is a single-component piece typically installed as part of a two- or three-piece compression fitting assembly. The 8mm tube OD sizing makes it compatible with metric tube systems common in imported equipment, industrial machinery, and process plumbing applications where LEGRIS compression fittings are already in use.

Key Features

• Brass construction for corrosion resistance in pneumatic and fluid service
• Fits 8mm outside diameter tubing for metric tube systems
• Rated to 320 psi maximum working pressure
• Operating temperature range: -40 degrees F to 210 degrees F
• Certified to ATEX, PED, Prop 65, REACH, RoHS, and WEEE standards
• Single-unit packaging; compatible with standard compression fitting assemblies

Compatibility

Designed as an OEM-style compression taper nut for use in LEGRIS compression fitting assemblies accepting 8mm outside diameter tubing.

Installation Notes

Installation is performed by qualified plumbing or fluid-systems technicians. Before service, depressurize and isolate the affected tubing line completely. Hand-tighten the taper nut onto the compression body first, then snug with a wrench — do not overtighten brass compression fittings, as this can crack or deform the fitting body. Verify tube end is cut square and deburred before insertion to ensure a proper seal.
