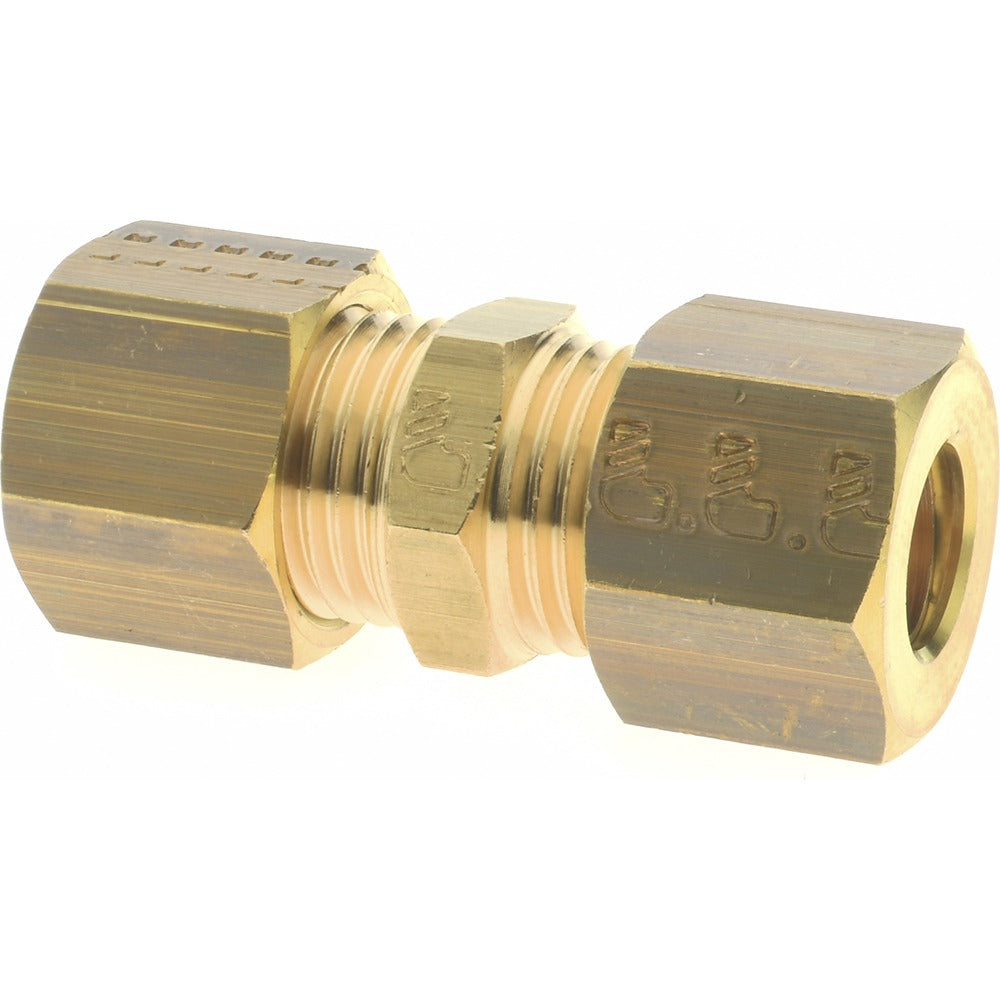

Legris 0106 10 00 Compression Tube Union Brass

Product Description

The LEGRIS 0106 10 00 is a brass compression tube union designed to join two compression-end tubes in a single inline fitting. It provides a leak-resistant, tool-assisted connection without soldering or flaring, making it a practical choice for pneumatic and fluid distribution lines. Rated to 330 psi maximum working pressure and capable of handling temperatures from -40 degrees F to 210 degrees F, this union suits demanding industrial and commercial plumbing applications. The 10 mm outside diameter sizing is consistent with metric tube standards common in European-style pneumatic assemblies. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers.

This fitting is suited for use in pneumatic control lines, compressed air distribution, light hydraulic circuits, and process fluid tubing systems where inline tube joining is required. Its brass construction resists corrosion in a range of fluid media. The compression-by-compression end configuration allows connection of two tube runs of matching outside diameter without special adapters. It is commonly found in industrial plant environments, commercial HVAC pneumatic control systems, and process instrumentation installations where metric tubing is standard.

Key Features

• Compression x compression end connections for tool-free tube insertion and secure mechanical grip
• Brass construction provides corrosion resistance across a wide range of fluid and gas media
• Rated to 330 psi maximum working pressure for use in compressed air and light fluid systems
• Wide service temperature range of -40 degrees F to 210 degrees F
• Meets ATEX, CNOMO E07.21.115N, PED, Prop 65, REACH, and RoHS compliance standards
• 10 mm tube outside diameter sizing compatible with metric pneumatic tubing

Compatibility

Designed as an OEM-style inline union for 10 mm OD compression tubing in pneumatic and fluid distribution systems. Specific system or equipment compatibility was not provided in the product data; verify tube outside diameter and working pressure requirements before installation.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or instrumentation technician. Depressurize and isolate the tubing circuit completely before disassembling or installing any compression fitting. Ensure tube ends are cut cleanly and squarely and are free of burrs before insertion to achieve a proper seal. Follow applicable codes including ASME B31.1 or B31.3 where process piping standards apply.
