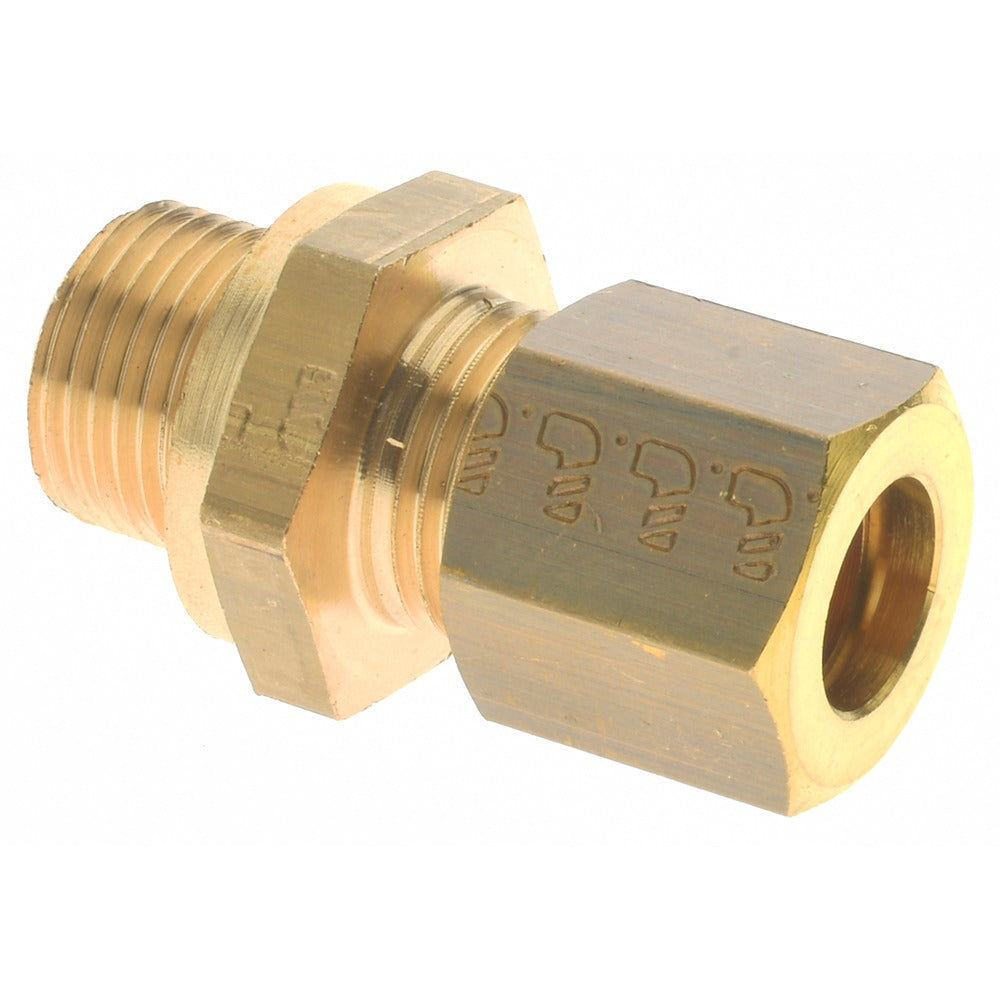

Legris 0101 08 65 Compression Tube Connector Brass

Product Description

The LEGRIS 0101 08 65 is a brass compression tube connector designed for joining 8mm outside diameter tubing to M12 x 1.00 metric threaded ports in pneumatic and fluid handling systems. One end uses a compression fitting and the other end uses metric thread, making it a practical inline connection point where tube meets threaded component. Rated to 320 psi maximum working pressure and a temperature range of -40 degrees F to 210 degrees F, this connector suits demanding industrial environments. Licensed trades and maintenance technicians install this part in compressed air, inert gas, and compatible fluid lines where a reliable leak-resistant connection is required.

This connector is suited for light industrial and commercial applications including pneumatic control systems, machine tool lines, and process equipment where metric thread ports are standard. Its brass construction provides corrosion resistance in typical shop-air and dry-gas service. The M12 x 1.00 thread size and 8mm tube OD are common in European-designed equipment and machinery that follows CNOMO and metric plumbing standards. A single unit is packaged per order, making it straightforward to source for maintenance or repair jobs requiring an exact replacement or new installation point.

Key Features

• Brass body construction for corrosion resistance in air and compatible fluid service
• Compression x metric thread end connections — 8mm OD tube to M12 x 1.00 port
• 320 psi maximum working pressure rating
• Wide temperature range: -40 degrees F to 210 degrees F
• Compliant with ATEX, CNOMO E07.21.115N, PED, Prop 65, REACH, and RoHS standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for pneumatic and fluid systems using 8mm OD tubing and M12 x 1.00 metric threaded ports.

Installation Notes

Installation should be performed by a qualified pipefitter, pneumatic technician, or maintenance mechanic familiar with compression fittings and metric threaded connections. Depressurize and lock out the system before disassembling any existing fittings or installing this connector. Ensure the tube end is cut cleanly and squarely and is free of burrs before seating it in the compression end. Do not overtighten the compression nut — follow the fitting manufacturer torque guidance or standard shop practice for brass compression fittings to avoid deforming the ferrule or fitting body.
