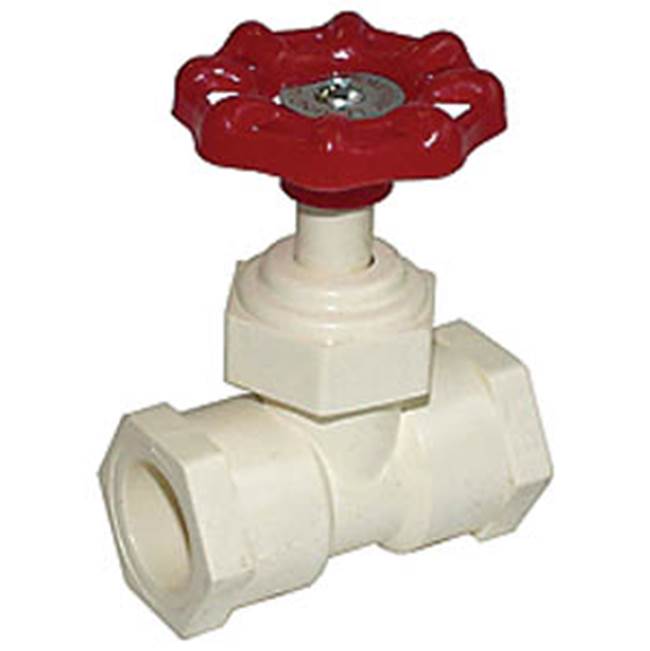

Legend Valve 202-503 Cpvc Stop Valve 1/2 Inch

Product Description

The LEGEND VALVE 202-503 is a 1/2-inch CPVC stop valve designed for cold water shutoff in residential and light commercial plumbing systems. Built from CPVC, this valve resists corrosion and is suited for chlorinated water supply lines where metal valves may degrade over time. Rated at 125 CWP (cold working pressure), the 202-503 provides a reliable in-line shutoff point for supply lines, fixture connections, and branch isolations. Its compact form factor — 3.6 x 2.5 x 2 inches — fits in tight spaces common to under-sink and in-wall installations. Licensed plumbers and mechanical contractors are the primary installers.

This stop valve is intended for cold water plumbing applications where CPVC pipe and fittings are already present in the system. Typical installations include residential water supply branches, fixture shutoffs, and remodel or retrofit work where CPVC is the specified pipe material. The compact dimensions make it practical for installations inside wall cavities, vanity cabinets, and utility closets.

Key Features

• 125 CWP rating provides a reliable cold water pressure rating for residential supply lines
• CPVC construction resists corrosion and chemical degradation in chlorinated water systems
• Compact 3.6 x 2.5 x 2 inch body fits in confined installation spaces
• 1/2-inch connection size matches the most common residential supply line dimension
• Lightweight at 0.19 pounds for easy single-hand handling during installation

Compatibility

Designed as an OEM-style replacement or new-installation stop valve for 1/2-inch CPVC cold water plumbing systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the main water supply and relieve system pressure before cutting into any existing line. Solvent-cement CPVC fittings require the correct CPVC-rated primer and cement — do not substitute PVC cement. Allow full cure time per the cement manufacturer instructions before restoring pressure to the line.

Technical Specifications

• Pressure Rating: 125 CWP
• Connection Size: 1/2 inch
• Material: CPVC
• Item Dimensions: 3.6 x 2.5 x 2 inches
• Weight: 0.19 pounds
• UPC: 662545003733

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 202-503
