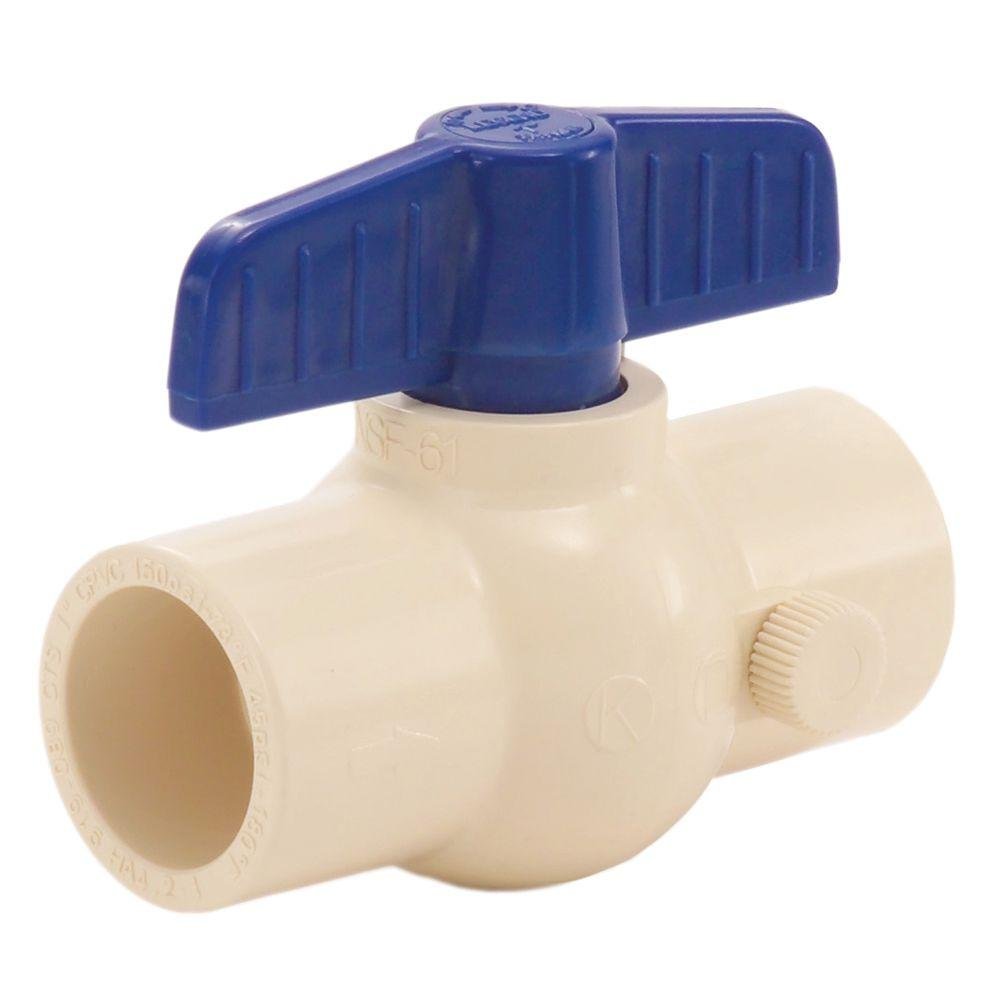

Legend Valve 202-423 1/2 in. CPVC Drainable Socket Ball Valve

Product Description

The Legend Valve 202-423 is a 1/2 in. CPVC drainable socket ball valve. Constructed from heavy-duty, corrosion-proof, virgin CPVC resin, it features a full port, solid ball design to minimize pressure drop. Designed for installation on Copper-Tube-Size (CTS) CPVC tubing for potable water and commercial plumbing.

• Constructed of heavy-duty, corrosion-proof, virgin CPVC resin
• Full port, solid ball design minimizes pressure drop
• PTFE seats and EPDM stem O-ring assure maintenance-free operation and maximum service life

Product Highlights

This CPVC ball valve is equipped with a drain port and plug, permitting line drain down water removal for maintenance or winterization.

Product Information

Standard Information

• Brand: LEGEND VALVE
• Manufacturer Part Number: 202-423
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Body Material: CPVC
• Connection Type: Solvent Weld
• Handle Material: ABS
• Inlet to Outlet Length: 2.68 in
• Material Standard: ASTM D1784-23447
• Nominal Size: 1/2 in
• Number of Handles: 1
• Number of Ports/Ways: 2
• Operator Type: Handle
• Port Type: Full
• Pressure Rating: 150 psi
• Seat Material: PTFE
• Series: S-606 Series
• Stem Material: CPVC
• Temperature Rating: 180 deg F
• Top to Inlet Center: 1.42 in
• Pipe Size: 1/2 in
• Standards: 150 PSI @ 73 °F
• CONFIGURATION: Solvent x Solvent; Full Port Ball Design
• Brand: Legend Valve
• Type: Valve
• Model: S-606
