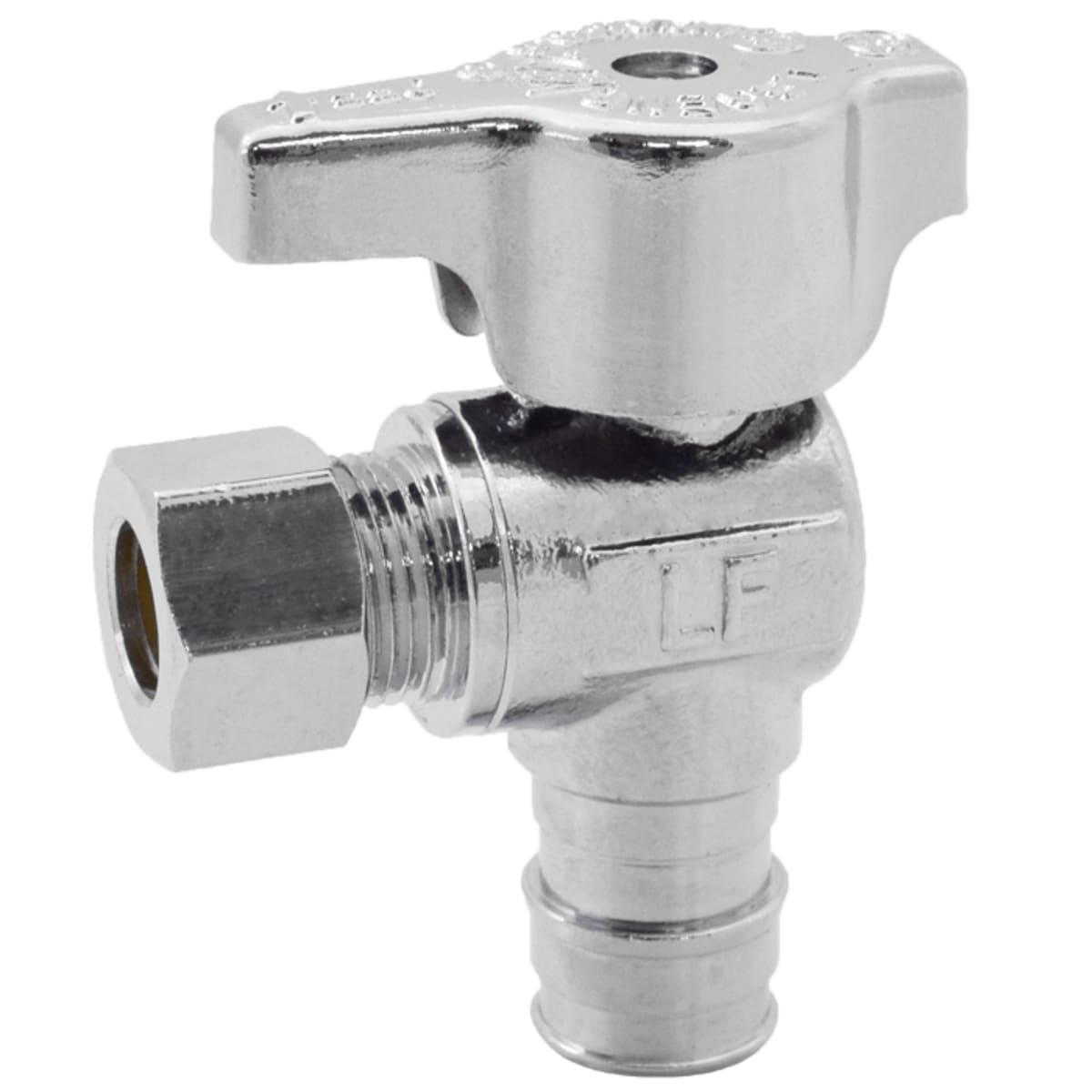

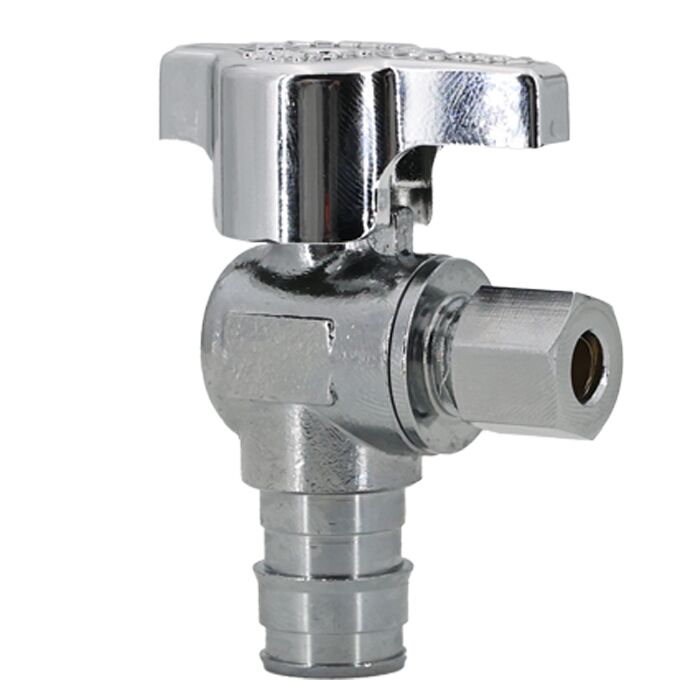

Legend Valve 114-606NL Angle Stop 1/2 x 3/8 in

Product Description

The Legend Valve 114-606NL is a quarter-turn, self-cleaning ball valve design that resists mineral and scale build-up, assuring positive shutoff and re-opening. The ball-seat operation and dual O-ring stem seal features out-perform traditional multi-turn stop designs. Compact, forged brass bodies are both durable and decorative. An ideal upgrade replacement for worn, leaking stops that won't close completely.

• Quarter-turn, self-cleaning ball valve design resists mineral and scale build-up, assuring positive shutoff and re-opening.
• The ball-seat operation and dual O-ring stem seal features out-perform traditional multi-turn stop designs.
• Compact, forged brass bodies are both durable and decorative.

Product Highlights

This angle stop valve is an ideal upgrade replacement for worn, leaking stops that won't close completely.

Product Information

Standard Information

• Brand: Legend Valve
• Manufacturer Part Number: 114-606NL
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Color: Chrome
• Vendor: Legend Valve
• Product UPC: 662545116570
• Color Family: Gray
• Product Category: PLUMBING
• Type of Material: Brass
• Manufacturer Name: LEGEND VALVE
• Connection_Size: 1/2" x 3/8"
• Connection_Type: F1960
• Size [Specifications]: 1/2" x 3/8"
• Pipe Size [Specifications]: 1/2"
• Standards [Specifications]: 125 CWP
• Connection Type [Specifications]: F1960 PEX x OD
• Body Material: Brass
• Domestic/Import: Import
• End Style: F1960 PEX x Compression
• Finish: Polished Chrome
• Nominal Size: 1/2 x 3/8 in
• Pressure Rating: 125 CWP
• Series: T-595NL Series
• Temperature Rating: 180 deg F
• Trim Material: Brass/EPDM
• Type: 1/4 Turn Angle
• Actuator Type: Handle
• Softgoods Material: EPDM/NBR
• Manufacturer: LEGEND
• Manufacturer #: 114-606NL
• Additional Information: No-Lead
• Handle Material: ABS
• MPN: 114-606NL
• SKU: LEGE-114-606NL
• Brand: LEGEND VALVE
• base_unit: EA
• Size: 1/2" x 3/8"
• Configuration: PEX (F1960) x Compression (OD)
